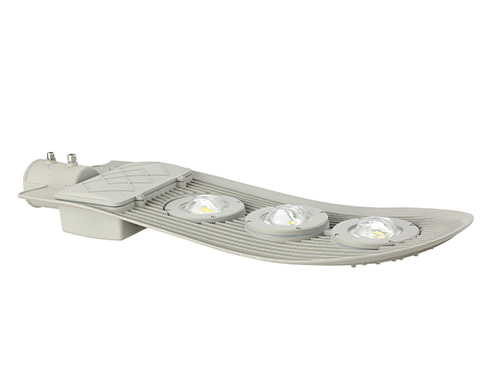

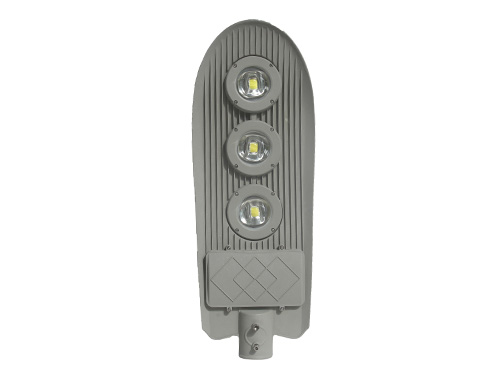

LED Street Light

Series No.: SM-R041

Using COB high lumen LED chips, high brightness, low light decay.
Leading LED chip of LUMILEDS,SAMSUNG, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more stable.
Advanced driver of MEANWELL, Inventronics,Philips, MOSO, and DONE. Constant current, high power factor, and small harmonic.
Application of high thermal conductivity blockade LED technology, effectively improve the thermal resistance of the lamp, making sure lifespan of 50,000 hours.

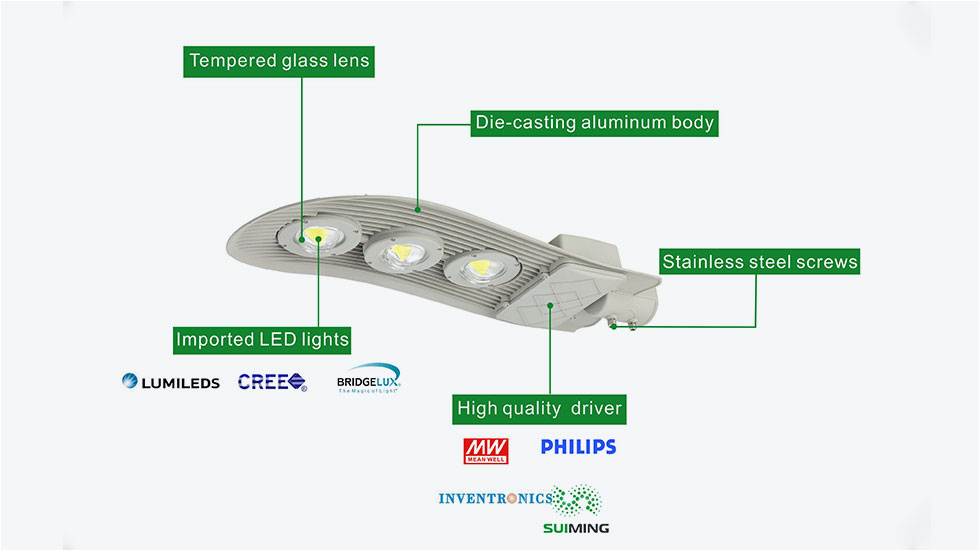

Material of ADC12 aluminum of high thermal conductivity, tempered glass cover, PMMA lens, 303 stainless steel screw.
More options: photocell sensor, 0-10V/10V PWM dimming, 10kv surge protection device,Lora smart management.

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-R041/50	SM-R041/100	SM-R041/150
Average Beam Angle	66.1×136.3°	66.1×136.3°	66.1×136.3°
Power	50W	100W	150W
Luminaire Flux	5000-7000LM	10000-14000LM	15000-21000LM
Luminous Efficacy	100-140lm/w	100-140lm/w	100-140lm/w
Color Temperature	3000-3500K, 4000-4500K, 6000-6500K upon request
Color Rendering Index	70/80/90Ra
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD Power automatically switch off when opening
Dimming	1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system
More Options	Photocell Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection
