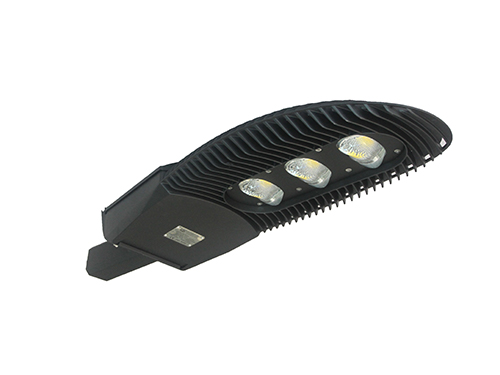

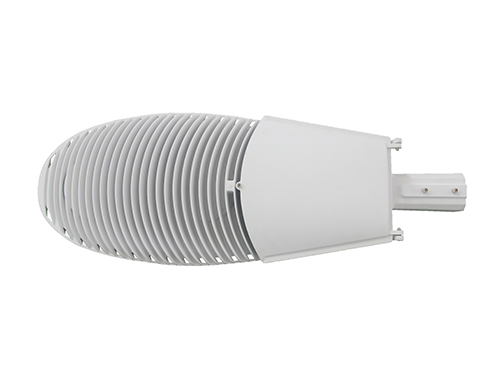

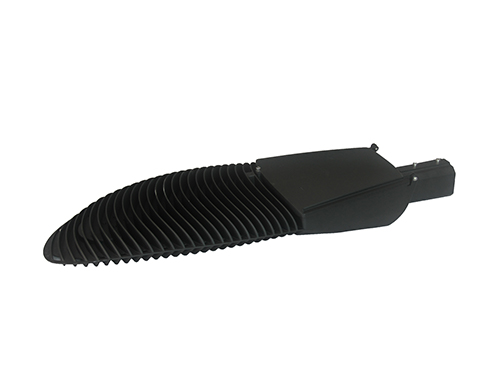

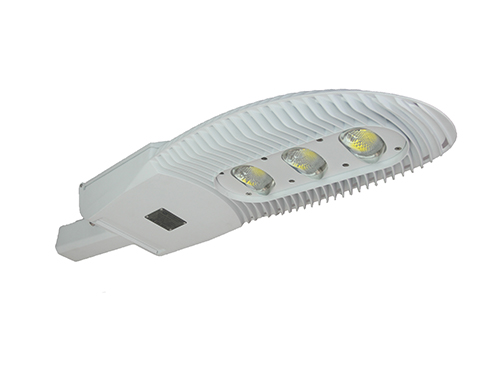

LED Street Light

Series No.: SM-R013B

Our patented product,high power COB LED street light with maximum 300W high power and high lumen output.
Knob-type opening, built-in fast power-off connector, automatic power-off after opening the cover, easy installation and maintenance, safer.
Using thermoelectric separated LED light source, high luminous flux output, excellent light-color consistency, 12 lens angles can be selected, reasonable control of light distribution, to ensure the ideal road brightness and uniformity.
Input voltage 85-305V AC, driving power efficiency up to 93%, lightning protection 6KV, built-in active power factor correction, power factor greater than 0.95, power supply built-in PWM constant current technology, high efficiency, high heat, low constant current and high accuracy
Provide the design structure of the level, and install the aerial work more conveniently.
Lightning protection mold can be installed and surge current up to 20KA.

Catalog

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-R013B/150	SM-R013B/200	SM-R013B/250	SM-R013B/300
Average Beam Angle	130*60°	130*60°	130*60°	130*60°
Power	150W	200W	250W	300W
Luminaire Flux	15000-22500LM	20000-30000LM	25000-37500LM	30000-45000LM
Luminous Efficacy	100-150lm/w	100-150lm/w	100-150lm/w	100-150lm/w
Color Temperature	3000-3500K, 4000-4500K, 6000-6500K upon request
Color Rendering Index	70/80/90Ra
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD Power automatically switch off when opening
Dimming	1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system
More Options	Photocell Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection
