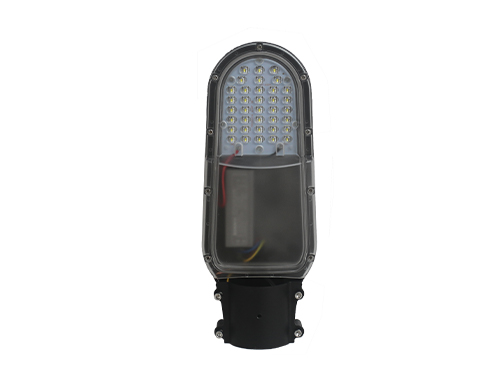

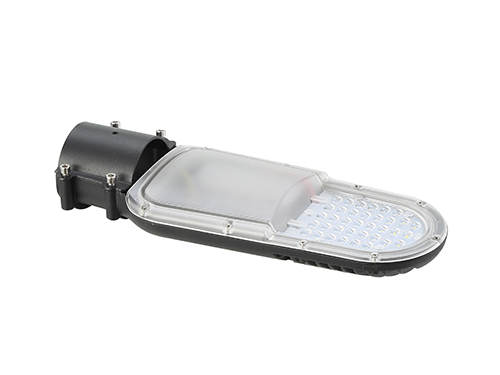

LED Street Light

Series No.: SM-R001

Small body with high brightness, low cost but maintain the good performance.
Two ways to install. With our installation accessories, can be installed on the wall or pole.

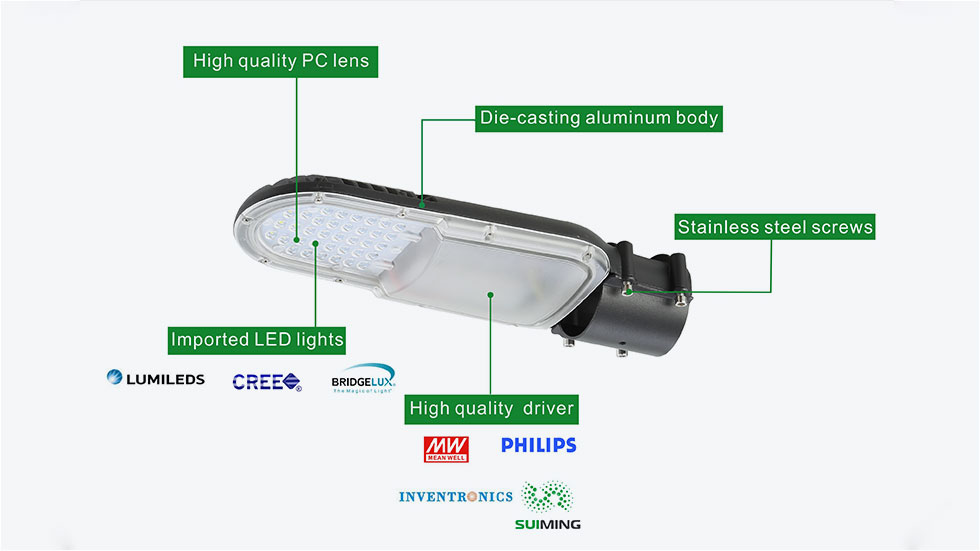

Leading LED chip of LUMILEDS,SAMSUNG, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more stable.
Advanced driver of MEANWELL, Inventronics,Philips, MOSO, and DONE. Constant current, high power factor, surge protection and small harmonic.
Application of high thermal conductivity blockade LED technology, effectively improve the thermal resistance of the lamp, making sure lifespan of 50,000 hours.
Die casting -aluminium housing with corrosion resistant and rust resistant power coated finish.

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-R001/30
Average Beam Angle	65.1×132.1°
Power	30W
Luminaire Flux	3600-4200LM
Luminous Efficacy	120-140lm/w
Color Temperature	3000-3500K, 4000-4500K, 6000-6500K upon request
Color Rendering Index	70/80/90Ra
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,4KV/10KV SPD
Dimming	1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system
More Options	Photocell Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection
