LED Pixel Light

Series No.: SM-DGY-059

Applicable place / product features

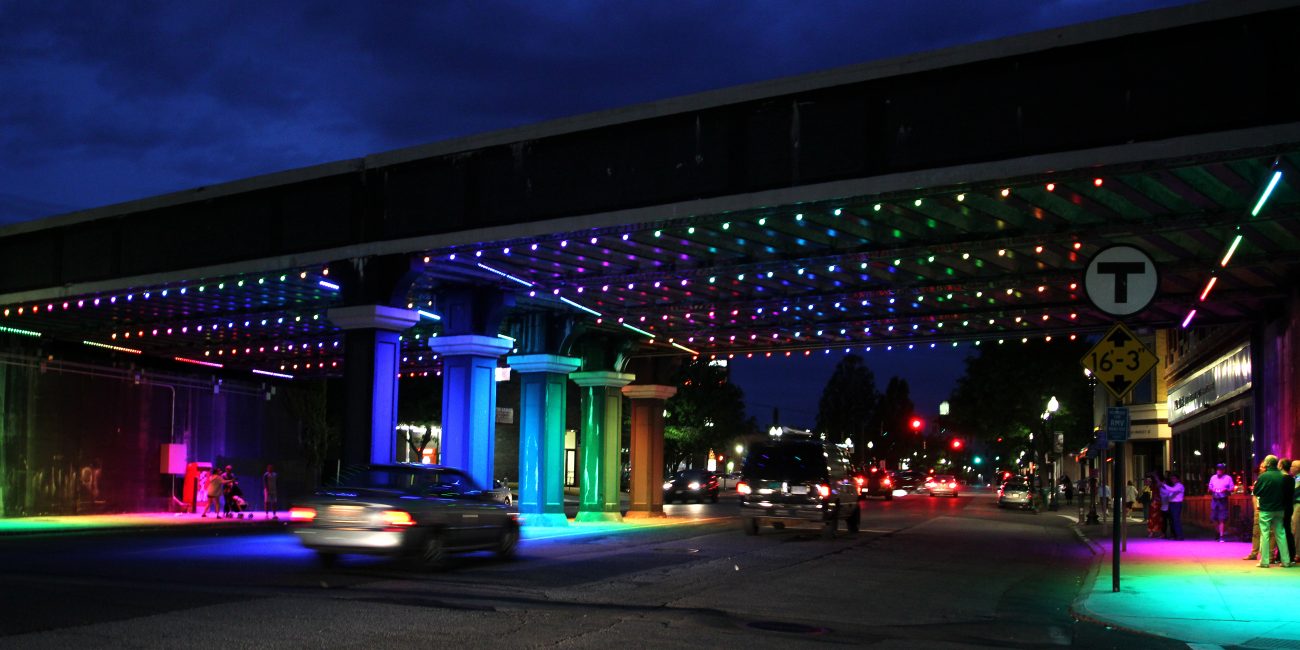

■LED pixel light, suitable for outdoor building, bridge, floodlight projection lighting of ancient buildings;

■Sealing ring adopts imported anti-aging silicone rubber material, convection heat dissipation design, waterproof structure, dimming RGB, suitable for ambient temperature -35°C-+55 °C, the lamp life is ≧35,000 hours.

Material:

■ Die-cast aluminum, high quality PC lampshade, stainless steel screws.

Surface treatment:

■Mechanical and chemical anti-corrosion treatment, anti-UV polyester powder, outdoor grade spraying, anti-salt spray level 3.

Optional:

■ Beam angle, surface spray color, and outlet length.

Electric appliance

■ Built-in constant current drive with over temperature overload protection.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

Technical Specifications

  • Model NO SM-DGY-059
    Power 3W
    Product size 100*100*60mm
    Input Voltage DC24V
    Average Beam Angle 180°
    Color Temperature 2000K-6500K, Single color,RGB
    Color Rendering Index 70/80/90Ra
    Ingress Protection IP65
    LED chips Epistar/Bridgelux
    Life span 50,000 hours @ 25℃ ambient temperature
    Operating Temperature -30℃ to 65℃
    Material  Aluminum alloy body + PC cover
    Control Mode DMX512
    More Options Can design new models as per clients’ requirements
