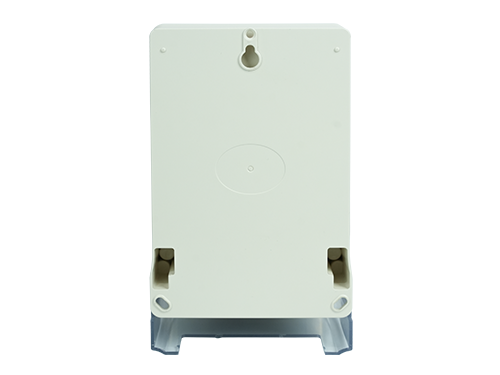

  • Suiming meters ED100P2

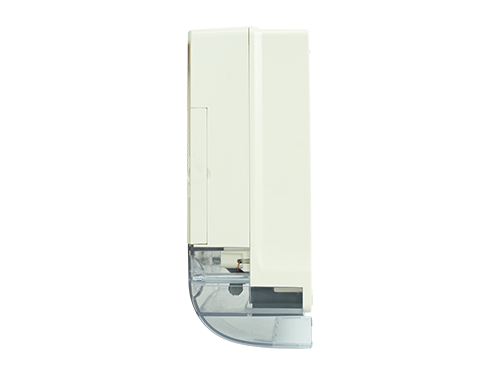

  • Suiming meters ED100P5
Smart Meter

Series No.: SM-ED100A

1.Prepayment

Users need to recharge their electricity bills first, which effectively avoids the problem of arrears that may occur with postpaid methods and reduces the risk of electricity bill recovery for power supply companies.



2.Controlling cost

Users can recharge according to their own electricity usage, thereby better controlling their electricity costs and intuitively understanding their electricity expenses.



3.Remote meter reading

Being able to remotely read meters eliminates the need for manual meter reading by the power supply department, greatly improving efficiency while also reducing the potential errors that may arise from manual meter reading.



4.Flexible management

The power supply department flexibly sets the parameters of the electricity meter through the system according to the actual situation, such as adjusting electricity prices, reminding of overdue power outages, and other functions, to facilitate management.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

Technical Specifications

  • Network 1 Phase 2 Wires network
    Normative Standard IEC 62053-21/24
    IEC 62056 -21/46/53/61/62
    EN 50470
    Accuracy Class kWh: Class 1.0
    kvarh: Class 1.0
    Reference Voltage 110- 120, 220 240V AC, L-N
    Operating Volage 70%- 120% Un
    Basic Current Ib 5A/10A
    Maximum Current Imax 60A/80A
    Starting Current 0.4%/0.2% Ib
    Reference Frequency 50/60Hz士5%
    Power Consumption Voltage circuit < 1W, <2.5VA
    Current circuit < 0.25VA
    Local Communication Optical, RS485
    Remote Communication PLC, RF, GPRS, 3G, 4G
    Protocol DLMS/COSEM
    Enclosure IP54 IEC60529
    Temperature Operation: -40°C+55°C
    Storage: -40°C+85°C
