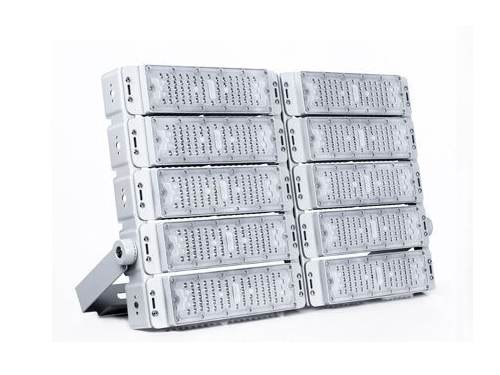

  • SM FL029 500

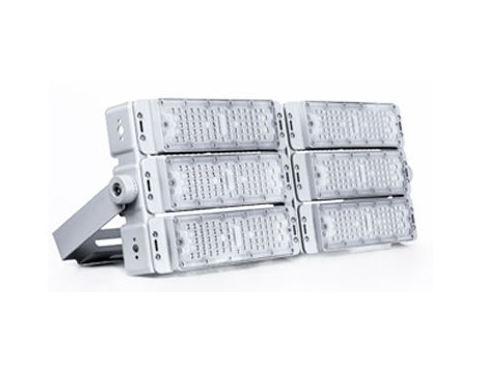

  • SM FL029 300

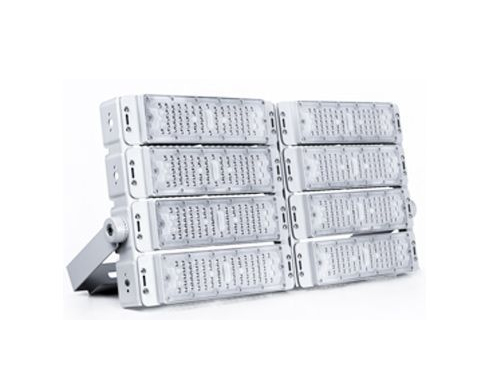

  • SM FL029 400

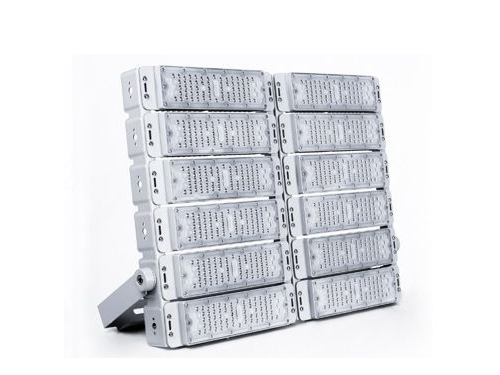

  • SM FL029 600
LED Flood Light

Series No.: SM-FL029

High-quality modular LED floodlights, widely used for stadiums, squares, docks, large warehouses, tunnels.

Lamp body is made of integrally-formed die-cast aluminum, with large heat dissipation area and good thermal conductivity.

Application of OSRAM, BRIDGELUX, PHILIPS, CREE and other internationally renowned brands of LED chips, the light efficiency and life span are all high-end in the industry.

Using PC optical lens with high light transmittance, the light-emitting angle can be customized.

Equipped with adjustable mounting bracket, can adjust the angle of 180 degrees, easy to install.

Provide quality assurance for more than 5 years.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

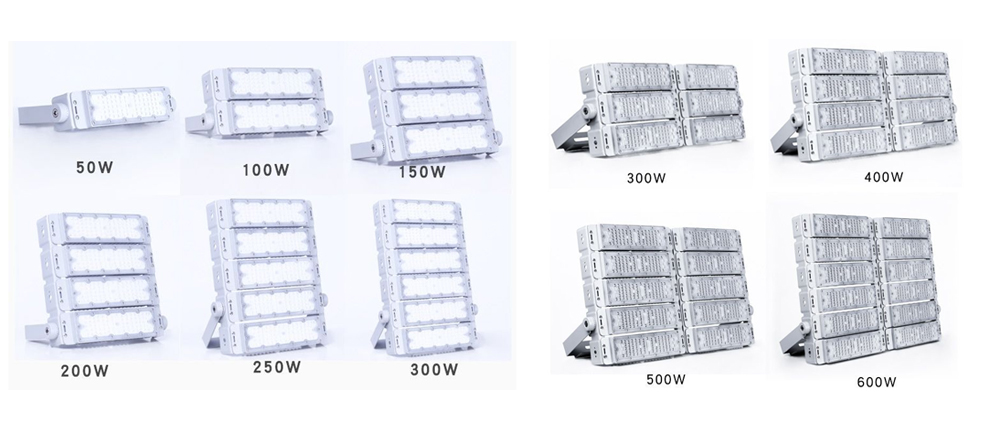

feature

Technical Specifications

  • Model NO. SM-FL029-100W SM-FL029-150W SM-FL029-200W SM-FL029-250W SM-FL029-300W SM-FL029-400W SM-FL029-500W
    Input AC85-265V AC85-265V AC85-265V AC85-265V AC85-265V AC85-265V AC85-265V
    Power 100W 150W 200W 250W 300W 400W 500W
    Luminous Efficacy 140-150lm/w 140-150lm/w 140-150lm/w 140-150lm/w 140-150lm/w 140-150lm/w 140-150lm/w
    Product size 250*350*75mm 340*350*75mm 410*350*75 mm 485*350*75mm 665*295*75mm 665*370*75mm 665*455*75mm
    Color Temperature 3000-3500K, 4000-4500K, 6000-6500K upon request
    Color Rendering Index 70Ra
    Power Factor 0.95
    Ingress Protection IP65
    Impact Resistance IK08
    Life span 100,000 hours @ 25℃ ambient temperature
    Operating Temperature -30℃ to 65℃
    Electical Data Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/SPD
    More Options Surge protection device (up to 10KV)
    0.75 external cable (other length upon request)
