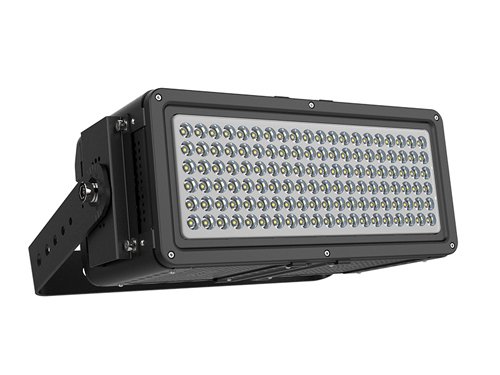

  • W high power LED flood light
  • W Industrial LED light
  • W LED flood light
  • W LED flood light
  • W LED flood light
  • W LED flood light
  • W high power LED flood light
  • W Industrial LED light
  • W LED flood light
  • W LED flood light
  • W LED flood light

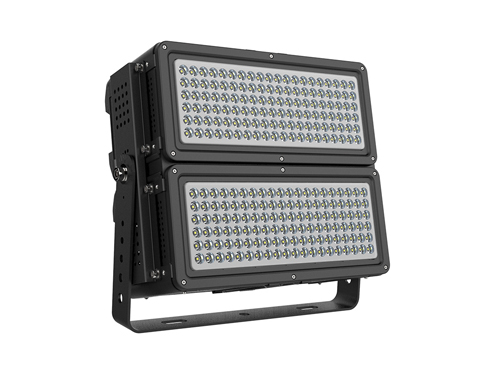

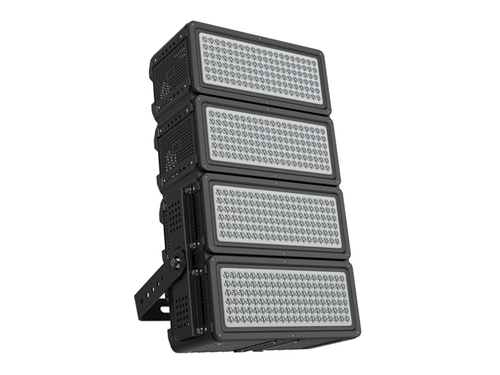

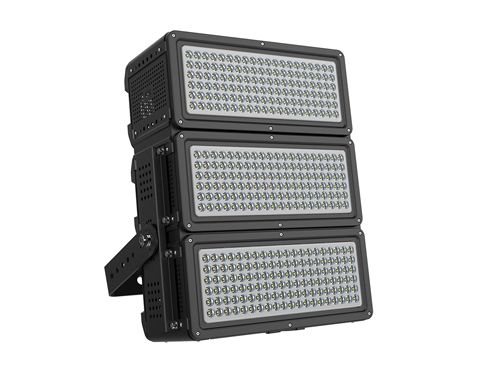

LED Flood Light

Series No.: SM-FL057

Private model stadium lights with patented appearance, one module can be 400W or 500W, the wattage can be superimposed, suitable for large sports fields or squares.

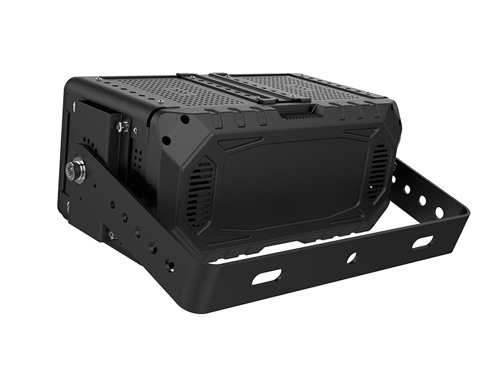

A handle is set on the top for easy carrying.

Anti-glare, anti-UV 30°,60°beam angle,LED Chip Cree5050,High lumen can reach to 140lm/w.

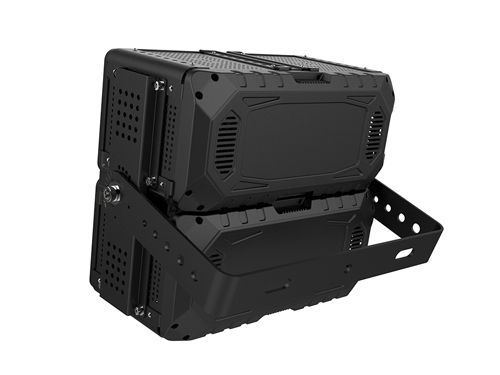

Air-duct design and vent design,built in 5mm thick radiator,high efficient heat dissipation,longer lifespan.

Scale on the bracket to ensure the uniformity of the installation angle.

With Meanwell Driver,5 years warranty.


Get A Free Quote
  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

Technical Specifications

  • Model NO. SM-FL057 SM-FL057 SM-FL057 SM-FL057 SM-FL057 SM-FL057 SM-FL057
    Input AC90-305V AC90-305V AC90-305V AC90-305V AC90-305V AC90-305V AC90-305V
    Power 400W 500W 800W 1000W 1200W 1500W 2000W
    Luminous Efficacy 130-140lm/w 130-140lm/w 130-140lm/w 130-140lm/w 130-140lm/w 130-140lm/w 130-140lm/w
    Product size(cm) 37.6*54.3*25 37.6*54.3*25 47*54.3*25 47*54.3*25 69*54.3*25 69*54.3*25 90*54.3*25
    Color Temperature 3000-3500K, 4000-4500K, 6000-6500K upon request
    Color Rendering Index 70Ra
    Power Factor 0.95
    Ingress Protection IP66
    Impact Resistance IK08
    Life span 100,000 hours @ 25℃ ambient temperature
    Operating Temperature -30℃ to 65℃
    Electical Data Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/SPD
    More Options Surge protection device (up to 10KV)
    0.75 external cable (other length upon request)
