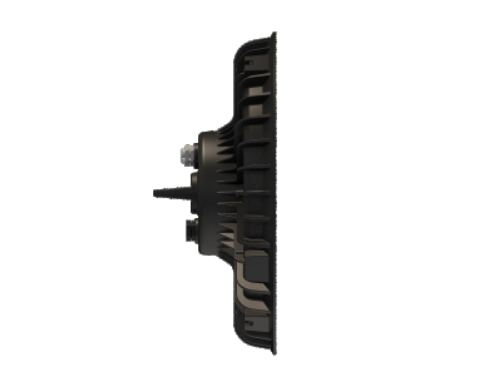

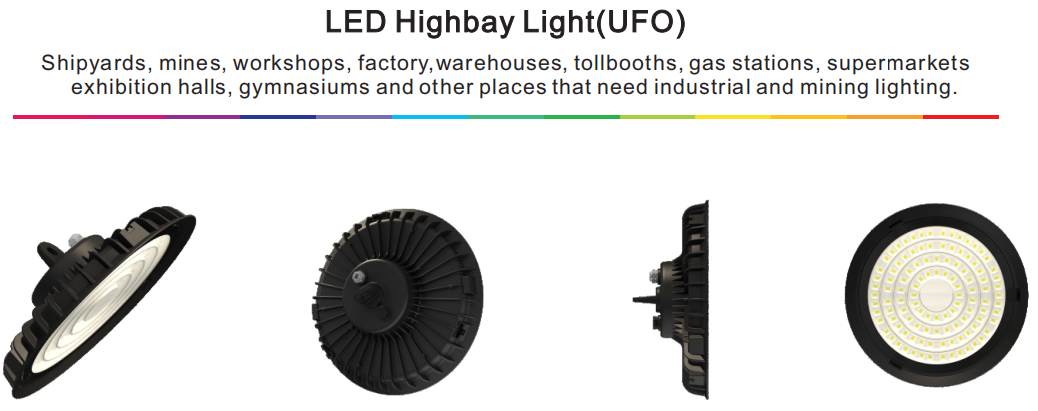

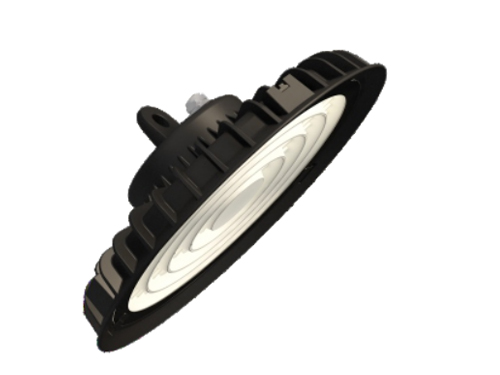

High Bay LED Light

Series No.: SM-I018

Compact design, compared with the previous high bay lights, the packaging volume is smaller, saving shipping and storage costs.

The lamp body is made of integrally-formed high-quality die-cast aluminum, with large heat dissipation area and good thermal conductivity.

The light-emitting angle is 60/90/120 degrees optional.

The IP65 waterproof and dustproof design can be used indoors or outdoors.

Get A Free Quote

Stable and Genuine Properties

Model NO.	SM-I018-50	SM-I018-100	SM-I018-150	SM-I018-200
Input	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Power	50W	100W	150W	200W
Luminous Efficacy	100lm/w	100lm/w	100lm/w	100lm/w
Product size	Φ168xH80mm	Φ237xH90mm	Φ302xH96mm	Φ360xH96mm
Color Temperature	3000-3500K, 4000-4500K, 6000-6500K upon request
Color Rendering Index	70Ra
Power Factor	0.9
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Material	Die-casting aluminium
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/SPD
More Options	Surge protection device (up to 10KV) 0.75 external cable (other length upon request)
