LED Street Light

Series No.: SM-R031

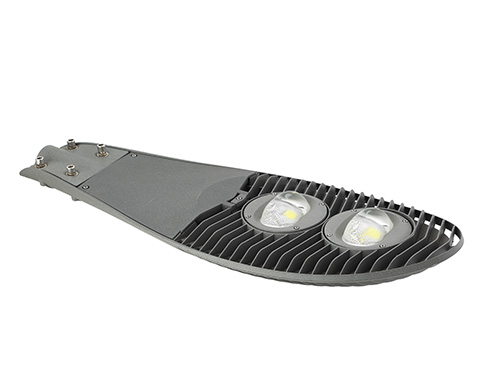

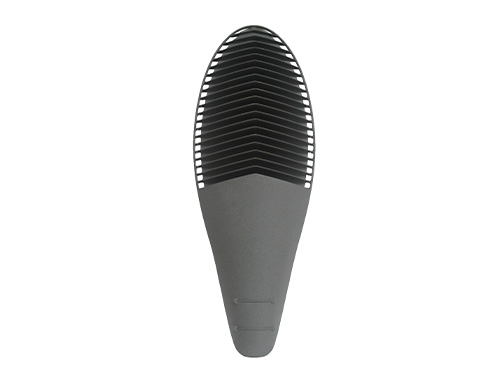

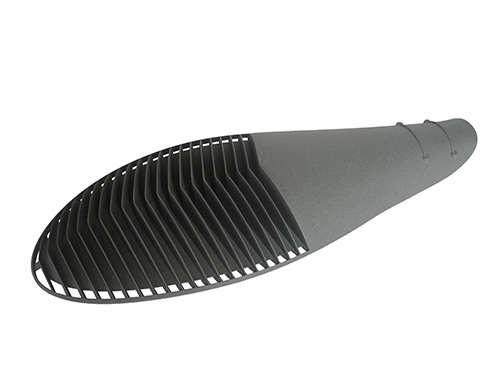

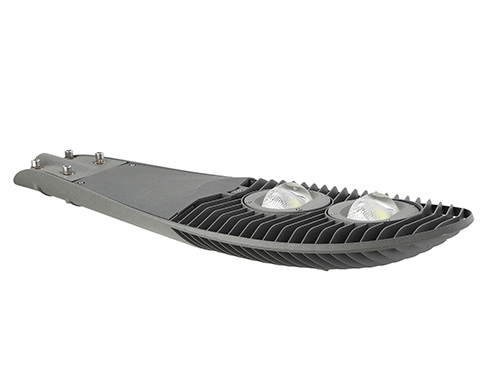

Pretty stylish leaf shape design, perfectly integrated with cities.
Thick die-casting aluminium lamp body with fin cooling design, make sure the LED chips work under relatively low temperature, extend the life of LED chips.
Overall lamp body with corrosion resistant and rust resistant power coated finish. And with IP65 protection, they can work fine in terrible outdoor environments.
Leading LED chip of Philips, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency,low light decay and more stable.
Advanced driver of MEANWELL, Inventronics, MOSO, SOSEN, and DONE. Constant current, high power factor, surge protection and small harmonic.
More options: Motion sensor, 0-10V/10V PWM dimming, 10kv surge protection device,Lora smart management.

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-R031/50	SM-R031/80	SM-R031/100	SM-R031/120	SM-R031/150	SM-R031/180
Average Beam Angle	65.1×132.1°	65.1×132.1°	65.1×132.1°	65.1×132.1°	65.1×132.1°	65.1×132.1°
Power	50W	80W	100W	120W	150W	180W
Luminaire Flux	5000-7000LM	8000-11200LM	10000-14000LM	12000-16800LM	15000-21000LM	18000-25200LM
Luminous Efficacy	100-140lm/w	100-140lm/w	100-140lm/w	100-140lm/w	100-140lm/w	100-140lm/w
Color Temperature	3000-3500K, 4000-4500K, 6000-6500K upon request
Color Rendering Index	70/80/90Ra
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD
Dimming	1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system
More Options	Photocell Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection
