LED Street Light

Series No.: SM-R051

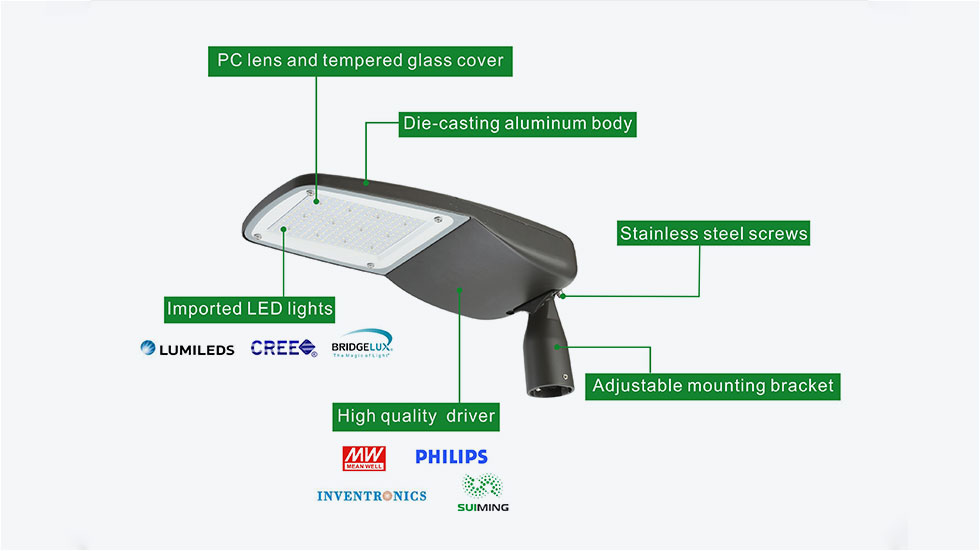

No need tool to open and close the driver case, very easy to maintain.
Inside with circuit breaker, when the cover is opened, the power is automatically cut off, more safe to install and maintain.
Adjustable angle bracket, easy to find a suitable mounting angle.
Die casting -aluminium housing with corrosion resistant and rust resistant power coated finish. And with IP65 protection, they can work fine in terrible outdoor environments.
High lumen 3030 LED chip of LUMILEDS,SAMSUNG, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more stable.
Advanced driver of MEANWELL, Inventronics,Philips, MOSO, and DONE. Constant current, high power factor, and small harmonic.
Application of high thermal conductivity blockade LED technology, effectively improve the thermal resistance of the lamp, making sure lifespan of 50,000 hours.
More options: photocell sensor, 0-10V/10V PWM dimming, 10kv surge protection device,Lora smart management.

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-R051/50	SM-R051/80	SM-R051/100	SM-R051/120	SM-R051/150	SM-R051/180	SM-R051/200
Average Beam Angle	65×150°	65×150°	65×150°	65×150°	65×150°	65×150°	65×150°
Power	50W	80W	100W	120W	150W	180W	200W
Luminaire Flux	5000-7500LM	8000-12000LM	10000-15000LM	12000-18000LM	15000-22500LM	18000-27000LM	20000-30000LM
Luminous Efficacy	100-150lm/w	100-150lm/w	100-150lm/w	100-150lm/w	100-150lm/w	100-150lm/w	100-150lm/w
Color Temperature	3000-3500K, 4000-4500K, 6000-6500K upon request
Color Rendering Index	70/80/90Ra
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD Power automatically switch off when opening
Dimming	1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system
More Options	Photocell Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection
