LED Street Light

Series No.: SM-R051

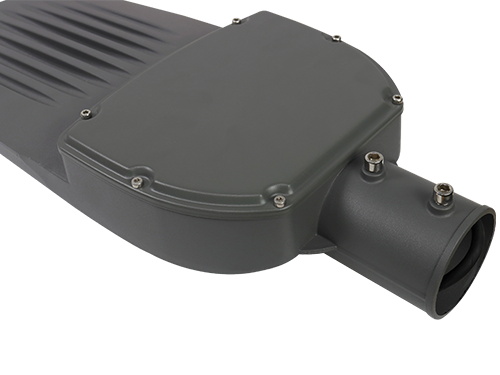

Die-casting integration efficient heat dissipation,sturdy and durable.

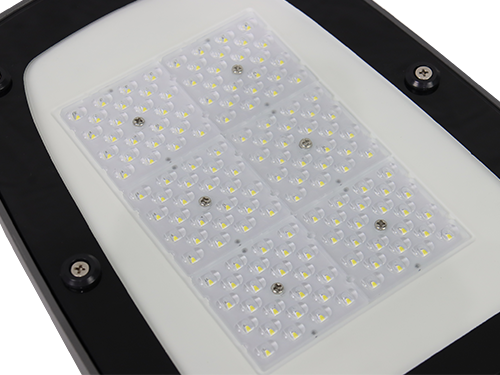

Import SMD led chips.High brightness, low light decay.Every piece testing and inspecting.
Dustproof and waterproof grade IP65 against bad weather.
High-strength transparent tempered glass+PC lens, high light transmission,impact resistance.
Using tempered glass lens, light transmittance 100%,uniform lighting, refractivity is strong,not easily broken.

Catalog

Get A Free Quote

Patented Products
High Brightness
High Efficacy
Good Heat Dissipation
ECO Friendly
Easy Install

Stable and Genuine Properties

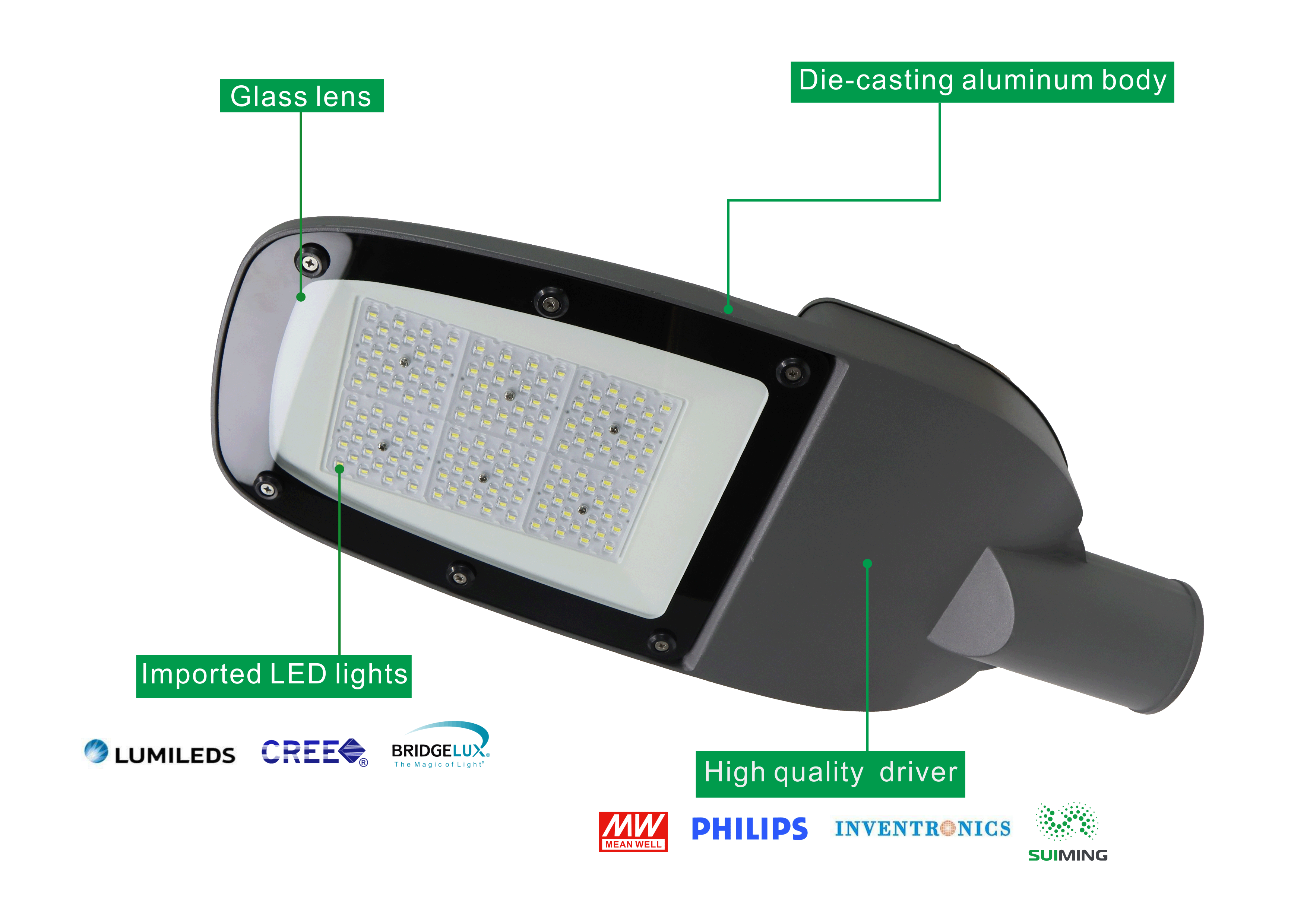

Suiming LED Street Light SM R0517示意图

Technical Specifications

Model No.	SM-R051/50	SM-R051/100	SM-R051/150	SM-R051/200
Power	50W	100W	150W	200W
Lumen	120lm/W	120lm/W	120lm/W	120lm/W
Luminaire Flux	6000	12000	18000	24000
Voltage	100-277V	100-277V	100-277V	100-277V
LED Chip	96	144	196	288
Color Temperature	6000K
Color Rendering Index	70Ra	70Ra	70Ra	70Ra
Power Factor	≥0.9	≥0.9	≥0.9	≥0.9
Ingress Protection	IP65	IP65	IP65	IP65
Impact Resistance	IK08	IK08	IK08	IK08
Beam angle	70* 140	70* 140	70* 140	70* 140
Life span	50000 hours @ 25℃ ambient temperature
Product size	399×166×86mm	489×209×84mm	551×239×90mm	645×287×88mm
Operating Temperature	-30℃ to 65℃
Driver	Isolated	Isolated	Isolated	Isolated
Material	Aluminum +PC
Warranty	5year	5year	5year	5year
More Options	Photocell sensor Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection
