LED Street Light

Series No.: SM-R057

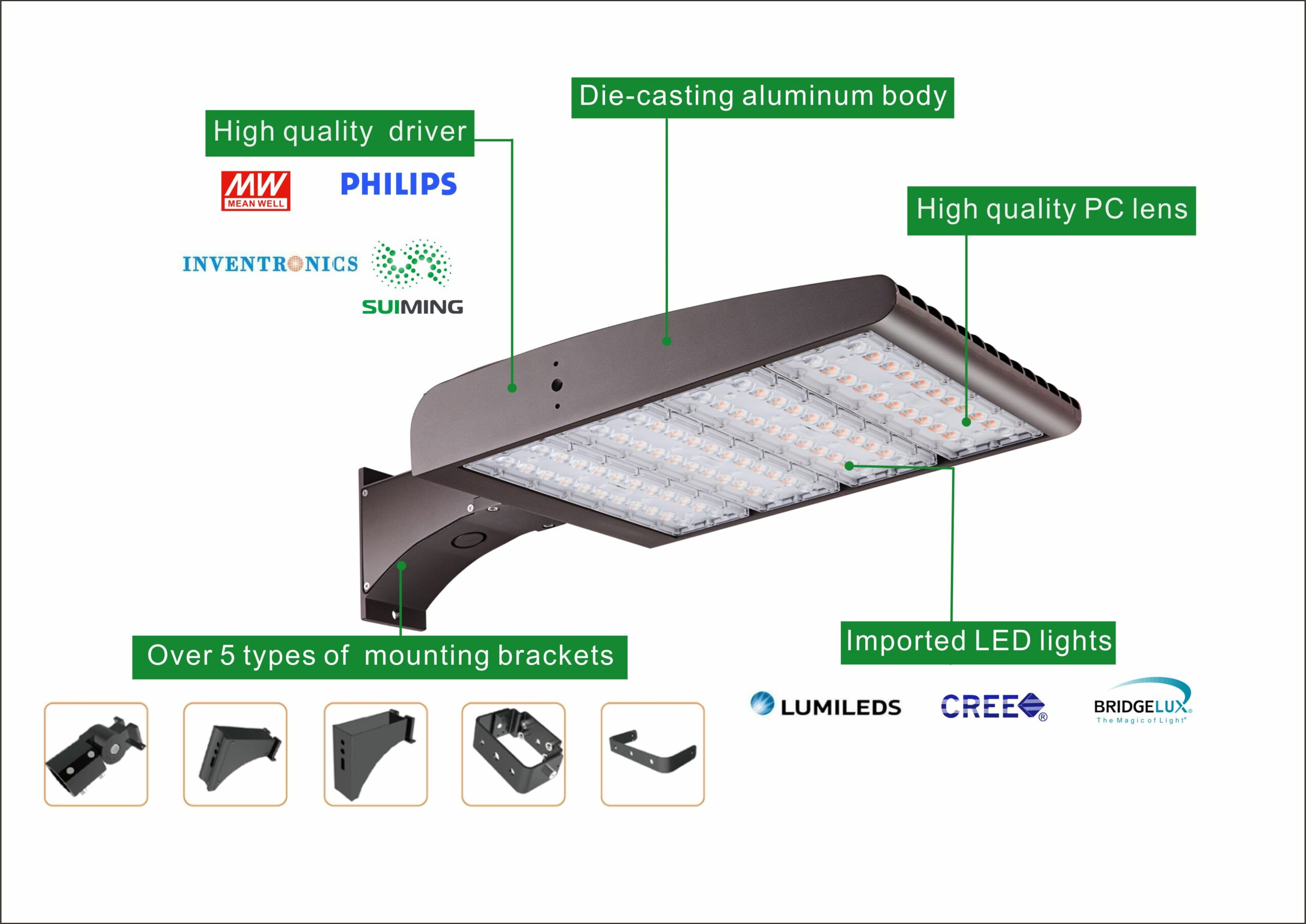

Over 4 types of mounting brackets for option. Very easy to install.
Optional photocell sensor, lamp will auto turn on and off according to lux difference.
Die casting -aluminium housing with corrosion resistant and rust resistant power coated finish. And with IP65 protection, they can work fine in terrible outdoor environments.
High lumen 3030 LED chip of Philips, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more stable.
Advanced driver of MEANWELL, Inventronics, MOSO, SOSEN, and DONE. Constant current, high power factor, and small harmonic.
Application of high thermal conductivity blockade LED technology, effectively improve the thermal resistance of the lamp, making sure lifespan of 50,000 hours.
More options: motion sensor, 0-10V/10V PWM dimming, 10kv surge protection device,Lora smart management.

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-R057/80	SM-R057/120	SM-R057/150	SM-R057/220	SM-R057/330
Average Beam Angle	130×60°	130×60°	130×60°	130×60°	130×60°
Power	80W	120W	150W	220W	300W
Luminaire Flux	10400LM	15600LM	19500LM	28600LM	39000LM
Luminous Efficacy	130lm/w	130lm/w	130lm/w	130lm/w	130lm/w
Color Temperature	3000K,4000K,5000K,6500K upon request
Color Rendering Index	70/80/90Ra
Power Factor	≥0.95
Ingress Protection	IP65
Impact Resistance	IK08
Life span	100,000 hours @ 25℃ ambient temperature
Operating Temperature	-30℃ to 65℃
Electical Data	Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD
Dimming	1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system
More Options	Photocell sensor Surge protection device (up to 20KV) 0.75 external cable (other length upon request) Smart control device Motion detection Different mounting brackets
