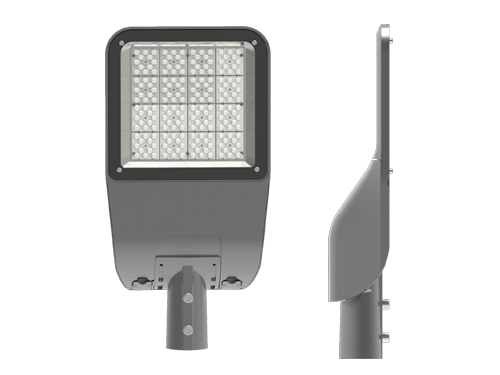

  • SM R058 150W 2

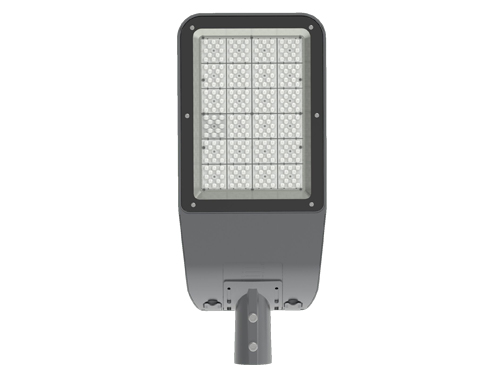

  • SM R058 200W

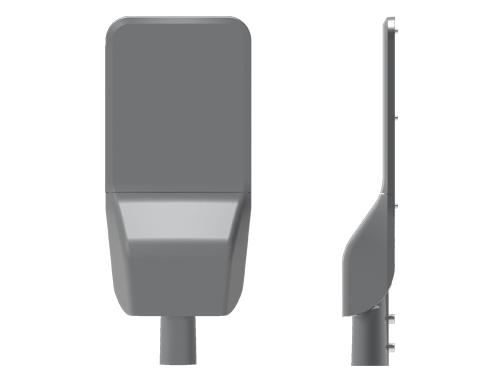

  • SM R058 200W BACK
LED Street Light

Series No.: SM-R058

  • No need tool to open and close the driver case, very easy to maintain.
  • Inside with circuit breaker, when the cover is opened, the power is automatically cut off, safer to install and maintain.
  •  Adjustable angle bracket, easy to find a suitable mounting angle.
  • Die-casting -aluminum housing with corrosion-resistant and rust-resistant powder-coated finish. And with IP65 protection, they can work fine in terrible outdoor environments.
  • High lumen 3030 LED chip of LUMILEDS, SAMSUNG, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more stability.
  •  The advanced driver of MEANWELL, Inventronics, Philips, MOSO, and DONE. Constant current, high power factor, and small harmonic.
  • The application of high thermal conductivity blockade LED technology, effectively improve the thermal resistance of the lamp, making the sure lifespan of 50,000 hours.
  • More options: photocell sensor, 0-10V/10V PWM dimming, 10kv surge protection device, Lora smart management.
  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

SM R058 2

Technical Specifications

  • Model NO SM-R058/60 SM-R058/80 SM-R058/120 SM-R058/150 SM-R058/180 SM-R058/240
    Input Voltage AC85-265V
    Average Beam Angle 70×140° 70×140° 70×140° 70×140° 70×140° 70×140°
    Power 60W 80W 120W 150W 180W 240W
    Luminous Efficacy 110-120lm/w 110-120lm/w 110-120lm/w 110-120lm/w 110-120lm/w 110-120lm/w
    Color Temperature 2000K-6500K
    Color Rendering Index Ra70/80/90
    Surge Protector 4KV 4KV 4KV 4KV 4KV
    Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
    Ingress Protection IP65
    Impact Resistance IK08
    Life span 100,000 hours @ 25℃ ambient temperature
    Operating Temperature -30℃ to 65℃
    Product size (mm) 305*525*110 305*525*110 305*605*110 305*605*110 305*730*110 305*730*110
    Material Aluminum alloy body + tempered glass
    Electical Data Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD
    Dimming 1-10V PWM
    AstroDIM for autonomous dimming with five independent levels
    Smart control management system
    More Options Photocell sensor
    Surge protection device (up to 20KV)
    0.75 external cable (other length upon request)
    Smart control device
    Motion detection                                                                                                                                                            Adjustable mounting bracket
