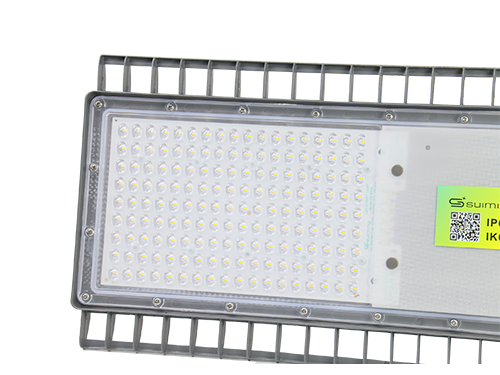

  • Suiming LED Street Light SM R0583

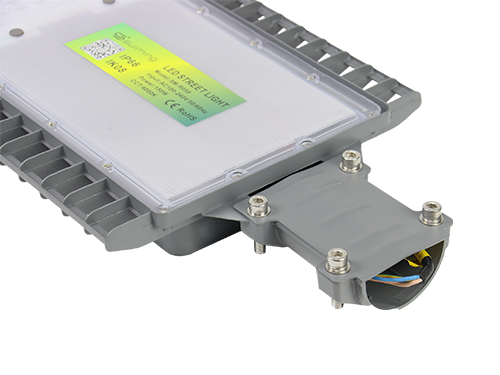

  • Suiming LED Street Light SM R0584

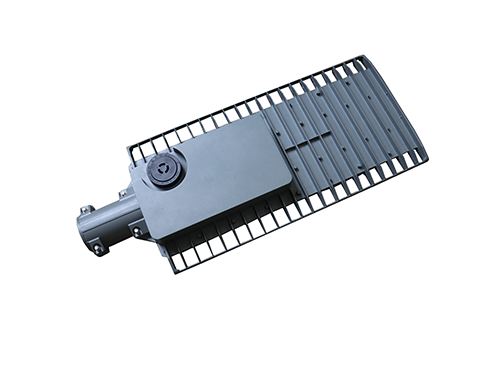

  • Suiming LED Street Light SM R0582

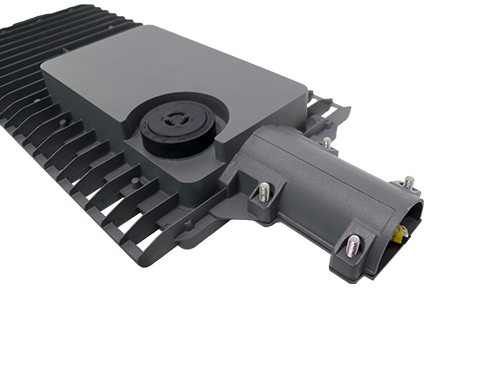

  • Suiming LED Street Light SM R0585
  • Suiming LED Street Light SM R0581
  • Suiming LED Street Light SM R0583
  • Suiming LED Street Light SM R0584
  • Suiming LED Street Light SM R0582
  • Suiming LED Street Light SM R0585
LED Street Light

Series No.: SM-R058

  • AC85-265V 50/60Hz universial voltage
  • Light Efficacy up to 120-130LM/W.
  • High lumen 3030SMD light source ,LM-80 Reports and ies files are ready
  • Die casting aluminum body, anti-corrosion painting.
  • IP66 waterproof for outdoor use.
Catalog
Get A Free Quote
  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

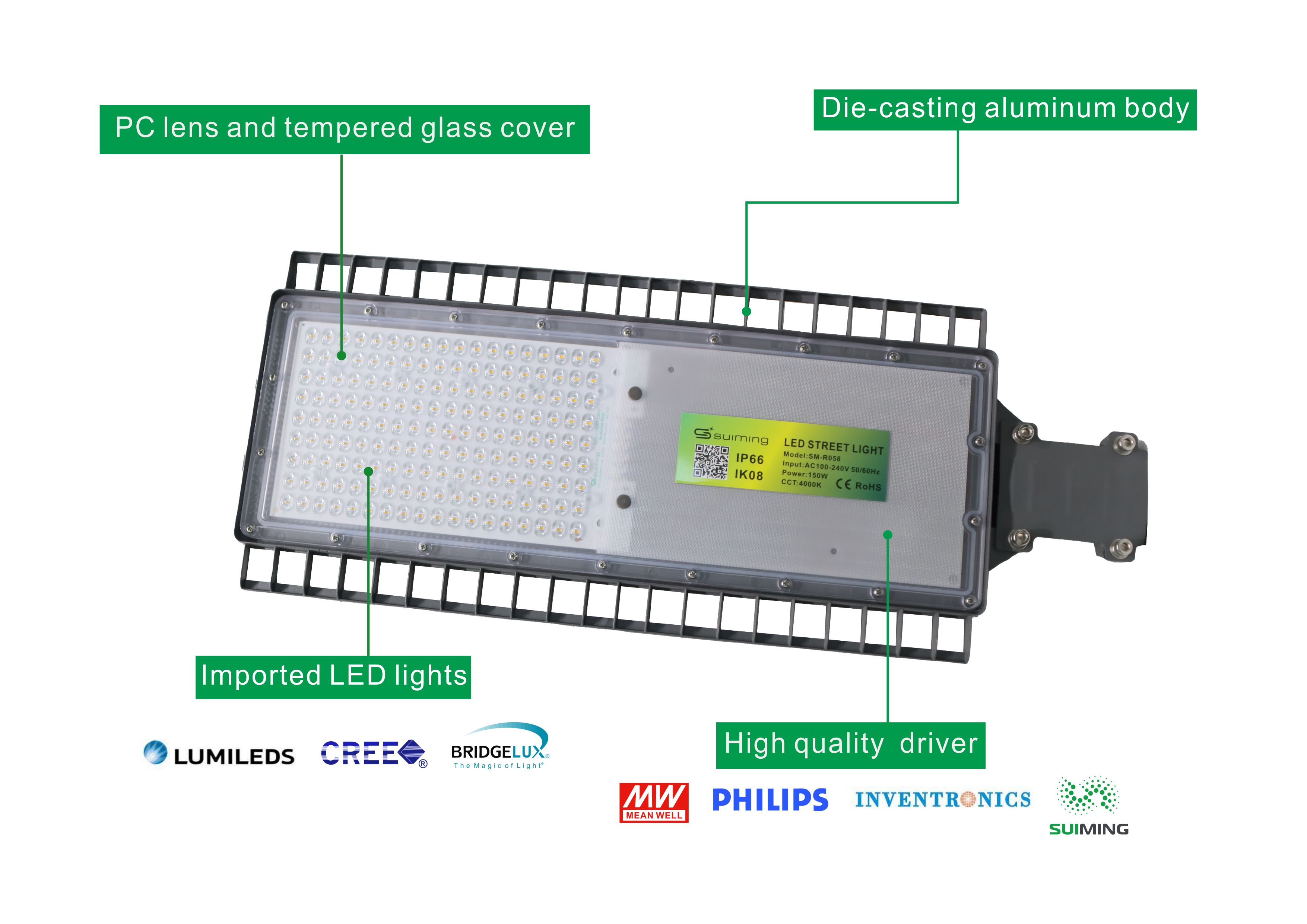

Suiming LED Street Light SM R0586示意图

Technical Specifications

  • Model No. SM-R058/150
    Power 150W
    Lumen 120lm/W
    Luminaire Flux 18000
    Voltage 85-265V
    LED Chip 162
    Color Temperature 6500K
    Color Rendering Index 80Ra
    Power Factor ≥0.95
    Ingress Protection IP66
    Impact Resistance IK08
    Beam angle 70 * 140
    Life span 50000 hours @ 25℃ ambient temperature
    Product size 700×280×61mm
    Operating Temperature -30℃ to 65℃
    Driver Isolated
    Material Aluminum Alloy
    Warranty 2year
    More Options Photocell sensor
    Surge protection device (up to 20KV)
    0.75 external cable (other length upon request)
    Smart control device
    Motion detection
