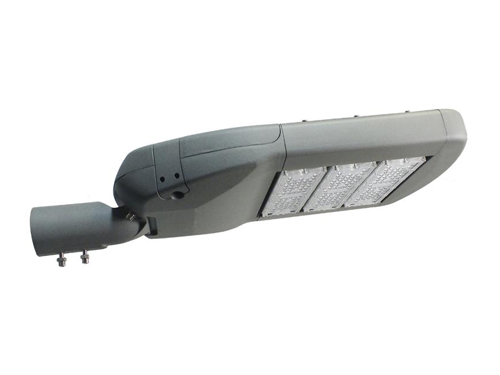

  • SM R061 4

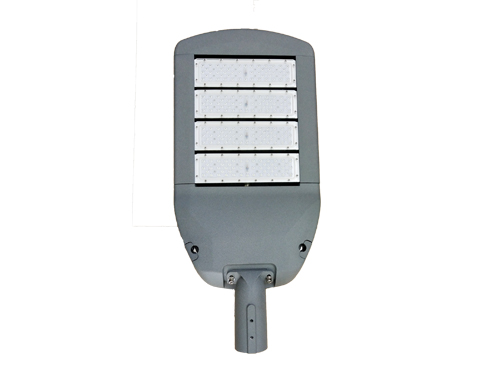

  • SM R061 2

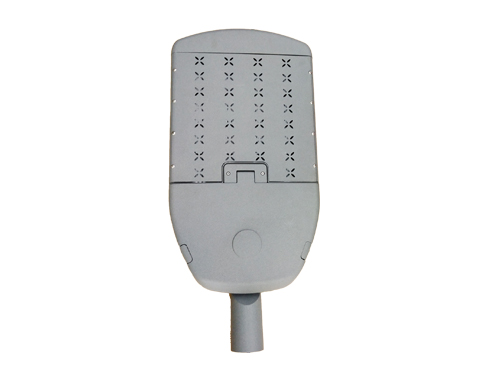

  • SM R061 3
LED Street Light

Series No.: SM-R061

SM-0061

1.Adjustable angle bracket, easy to find a suitable mounting angle.

2.Die casting -aluminium housing with corrosion resistant and rust resistant power coated finish. And with IP66 protection, they can work fine in terrible outdoor environments.

3. High lumen 3030or 5050LED chip of Philips, OSRAM, CREE, BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more stable.

4. Advanced driver of MEANWELL, Inventronics, MOSO, SOSEN, and DONE. Constant current, high power factor, and small harmonic.

5.Application of high thermal conductivity blockade LED technology, effectively improve the thermal resistance of the lamp, making sure lifespan of 50,000 hours.

6.More options: photocell sensor, 0-10V/10V PWM dimming, 10kv surge protection device,Lora smart management.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

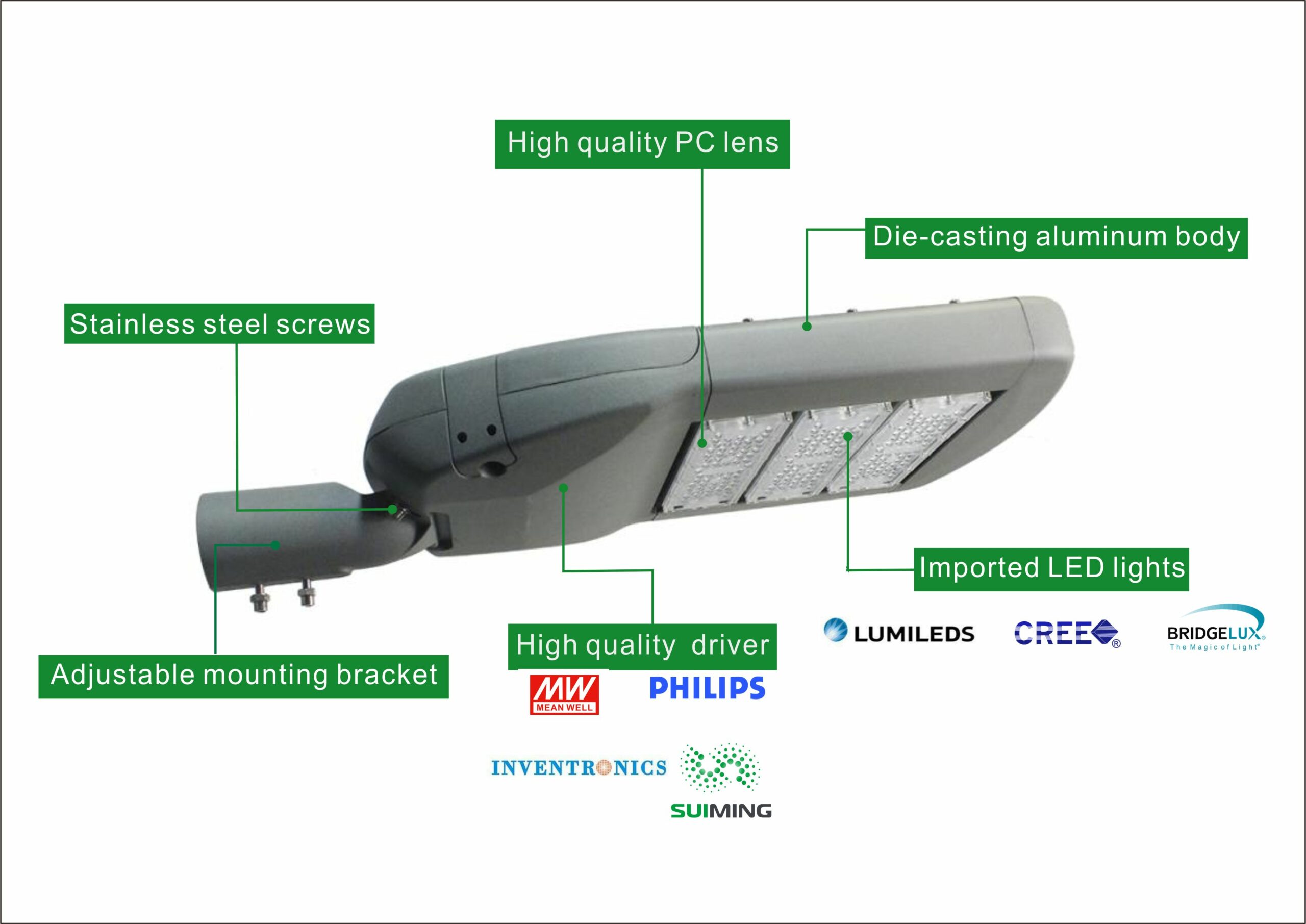

图形21 scaled

Technical Specifications

  • Model No. SM-R061/100 SM-R061/150 SM-R061/200 SM-R061/250
    Average Beam Angle 70×145° 70×145° 70×145° 70×145°
    Power 100W 150W 200W 250W
    Luminaire Flux 12000LM 18000LM 24000LM 30000LM
    Luminous Efficacy 120lm/w 120lm/w 120lm/w 120lm/w
    Color Temperature 3000K,4000K,5000K,6500K upon request
    Color Rendering Index 70/80/90Ra
    Power Factor ≥0.95
    Ingress Protection IP66
    Impact Resistance IK08
    Life span 100,000 hours @ 25℃ ambient temperature
    Operating Temperature -30℃ to 65℃
    Electical Data Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/50-60Hz,6KV/10KV SPD
    Dimming 1-10V PWM
    AstroDIM for autonomous dimming with five independent levels
    Smart control management system
    More Options Photocell sensor
    Surge protection device (up to 20KV)
    0.75 external cable (other length upon request)
    Smart control device
    Motion detection                                                                                                                                                            Adjustable mounting bracket
