LED Street Light

Series No.: SM-R066

AC85-265V50/60Hz universal voltage.
Full light up to 150lm/w.
Using 3030 patch lamp bead,LM-80 report and ies Complete light distribution documentation.
Thickened die-cast aluminum shell, anti-corrosion spraying process.
IP66 waterproof, can be used outdoors.
Domestic sales,foreign trade certification complete.

Catalog

Get A Free Quote

Patented Products
High Brightness
High Efficacy
Good Heat Dissipation
ECO Friendly
Easy Install

Stable and Genuine Properties

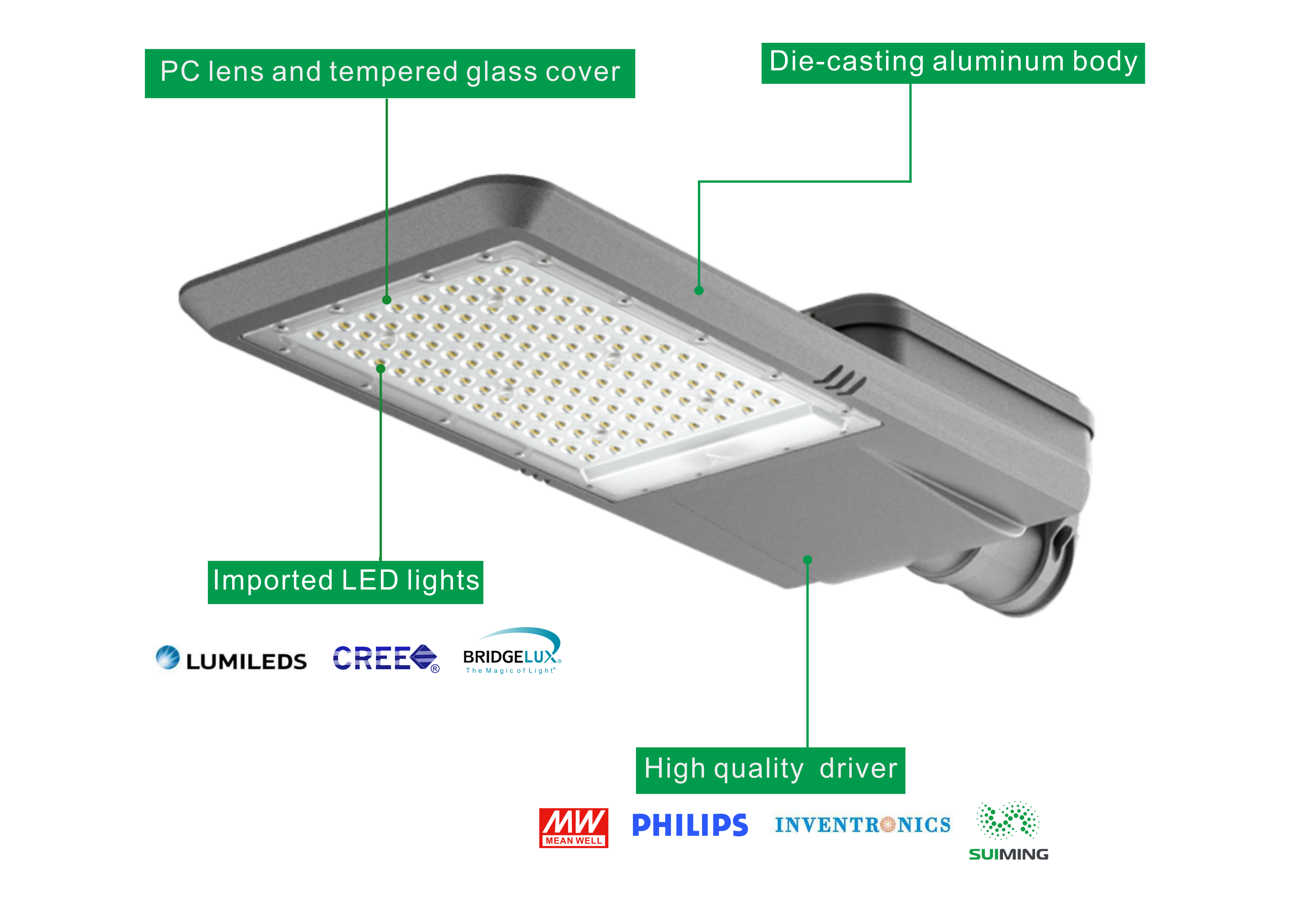

Suiming LED Street Light SM R0667示意图

Technical Specifications

Model No.	SM-R066/60	SM-R066/100	SM-R066/150
Power	60W	100W	150W
Lumen	150lm/W	150lm/W	150lm/W
Luminaire Flux	9000	15000	22500
Voltage	85-265V	85-265V	85-265V
LED Chip	192	240	400
Color Temperature	3000K/4000K/6000K
Color Rendering Index	80Ra	80Ra	80Ra
Power Factor	≥0.95	≥0.95	≥0.95
Ingress Protection	IP65	IP65	IP65
Impact Resistance	IK08	IK08	IK08
Beam angle	70* 140	70* 140	70* 140
Life span	50000 hours @ 25℃ ambient temperature
Product size	500×210×65mm	550×225×65mm	600×245×70mm
Operating Temperature	-20℃ to 40℃
Driver	Isolated	Isolated	Isolated
Material	Aluminum +PC
Warranty	2year	2year	2year
More Options	Photocell sensor, 10KV SPD, 0-10v dimming
