Solar Street Light

Series No.: SM-S021

The brand-new lamp body specially designed for solar street lamp has beautiful appearance, reasonable cost control and high cost performance.

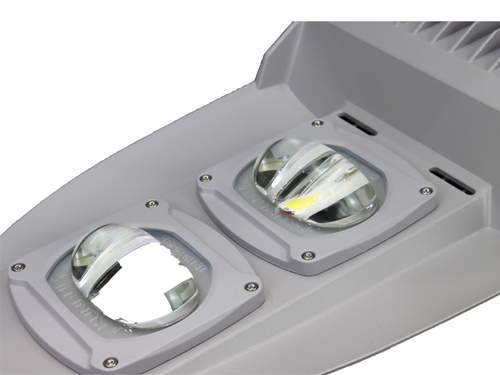

Adopt brand-new large-angle lens and high-efficiency COB light source, the luminous beam angle is very large, and the light distribution is even.

Adopt high-efficiency monocrystalline silicon solar panels, the conversion efficiency is as high as 18%, and the life span is more than 20 years.

The entire lamp housing is made of aluminum alloy, which is durable and has good heat dissipation performance. Anti-corrosion and anti-rust.

Using high-quality and large-capacity LiFePO4 battery, safe, high temperature resistant, small size, environmental protection, cycle life of more than 2000 times.

The whole lamp is designed with waterproof structure, and the ingress protection degree is IP65, which is suitable for various outdoor environments.

The working mode of the lamp can be customized according to customer requirements, such as 80% power in the first 6 hours, and 40% in the next few hours until dawn.

An intelligent solar controller is installed inside the lamp body to accurately control the internal current and voltage, and protect the battery charge and discharge to ensure the stable operation of the entire system.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

0AB@AZRBGPD9X3Z@3 M

Technical Specifications

  • Model NO SM-S021/70 SM-S021/100
    Power 70W 100W
    LED source Bridgelux COB Bridgelux COB
    LiFePO4 Battery  3.2V 60AH 6.4V 60AH
    Solr panel (Mono) 5V 70W 10V 100W
    Color Temperature 6500K 6500K
    Battery Life Span  2000 cycles  2000 cycles
    Advised Installation pole Height 6-7M 7-8M
    Product size 1306*426*43mm 1468*426*43mm
    Charge time 7-8 hours in sunny weather
    Backup time 3-5 Rainy Days
    Ingress Protection IP65
    Sensor type option
    Remote controller option
    Life span 50,000 hours @ 25℃ ambient temperature
    Operating Temperature -35℃ to 65℃
    Working mode The mobile phone APP can be connected via Bluetooth, the working voltage and current of the lamp can be adjusted through the mobile phone, and the work data can be monitored in real time.
    More Options Solar power and battery capacity can be customized according to customer needs.
