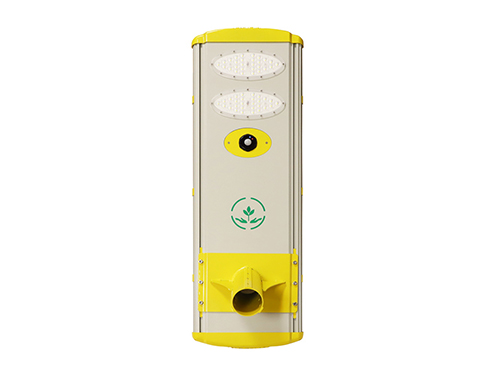

  • s022 solar street light 60w

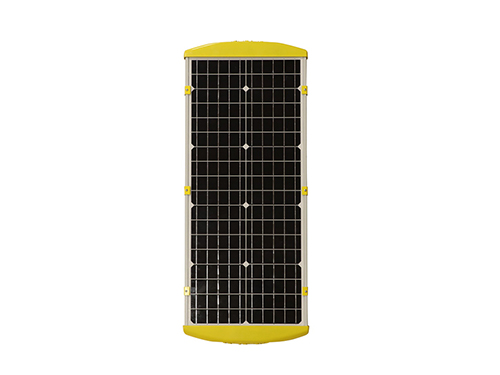

  • s022 solar street light 80w

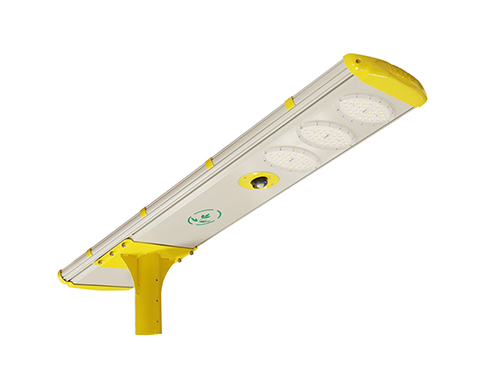

  • S022 solar street light 100w

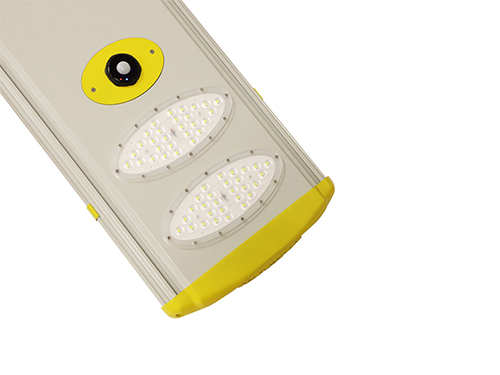

  • s022 solar street light 120w

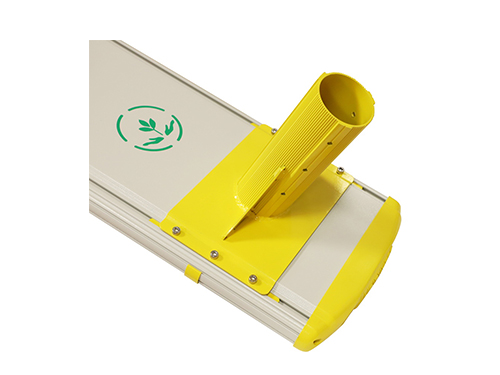

  • s022 solar street light 40W
Solar Street Light

Series No.: SM-S022

  • Application of BRIDGELUX 5050 LED chips, which with low light decay, high brightness,less heat generation and a service life of more than 50000 hours.
  • Adopt high-efficiency monocrystalline silicon solar panels, the conversion efficiency is as high as 20%, and the life span is more than 20 years.
  • The whole lamp housing is made of 6063 aluminum alloy, which is durable and has good heat dissipation performance. Anti-corrosion and anti-rust.
  • The use of high-quality large-capacity LiFePO4 battery, safe, high temperature resistant, small size, environmental protection, cycle life of more than 2000 times.
  • The whole lamp is designed with waterproof structure, and the ingress protection is IP65, which is suitable for various outdoor environments.
  • An intelligent solar controller is installed inside the lamp body to accurately control the internal current and voltage, and protect the battery charge and discharge to ensure the stable operation of the entire system.
  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

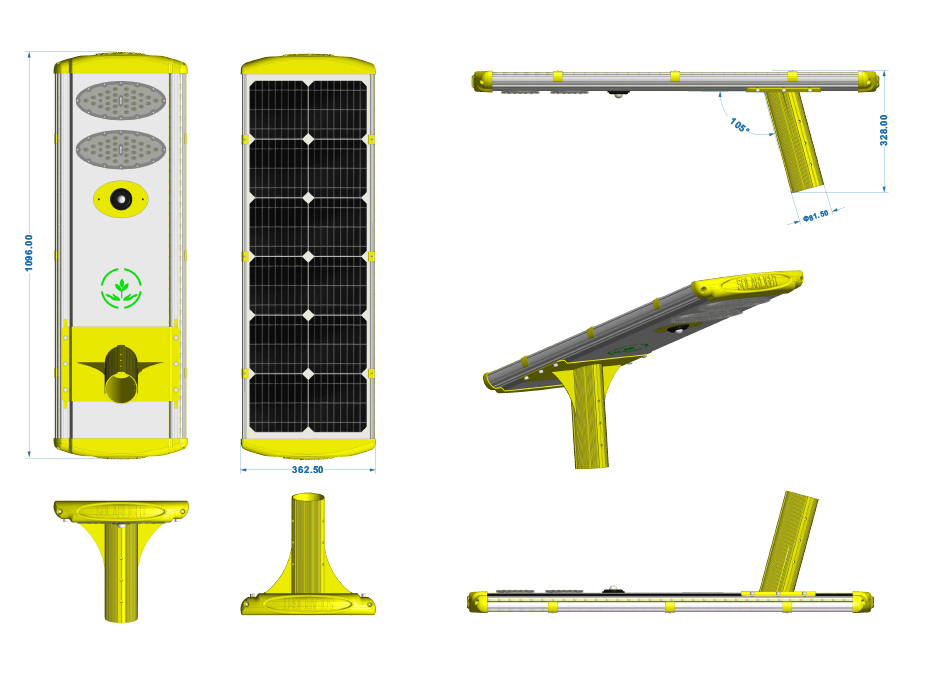

solar street light design

Technical Specifications

  • Model NO SM-S022/40 SM-S022/60 SM-S022/80 SM-S022/100 SM-S022/120
    Power 40W 60W 80W 100W 120W
    LED source Bridgelux 5050 Bridgelux 5050 Bridgelux 5050 Bridgelux 5050 Bridgelux 5050
    Lumens 150-170LM/W 150-170LM/W 150-170LM/W 150-170LM/W 150-170LM/W
    LiFePO4 Battery  12.8V 24AH  12.8V 36AH  12.8V 48AH  12.8V 54AH  12.8V 60AH
    Solr panel (Mono) 18V 60W 18V 80W 18V 100W 18V 120W 18V 150W
    Color Temperature 6500K 6500K 6500K 6500K 6500K
    Battery Life Span  2000 cycles  2000 cycles  2000 cycles  2000 cycles  2000 cycles
    Advised Installation pole Height 5-6M 6-7M 7-8M 8-10M 10-12M
    Product size 916*362.5*328mm 1096*362.5*328mm 1416*362.5*328mm 1566*362.5*328mm 1726*362.5*328mm
    Charge time 7-8 hours in sunny weather
    Backup time 3-5 Rainy Days
    Ingress Protection IP65
    Sensor type PIR
    Remote controller Option
    Life span 50,000 hours @ 25℃ ambient temperature
    Operating Temperature -35℃ to 65℃
    Working mode Light control and PIR sensor.  Light control means lights turn on or off according to the luminance of the day or night. PIR sensor or microwave control means during lighting time, regular power is half power but when there are objects detected by PIR or Microwave, lights turn to 100% power and return to regular power after objects leave for few seconds.
