Solar Street Light

Series No.: SM-S048

  • SM-S048 series of all-in-one solar led street light, which have high efficiency monocrystalline silicon solar panel, lithium iron phosphate battery with more than 5 years’ lifespan, intelligent solar controller with time control, dimming control and automatic energy-saving control mode and PIR sensor, are widely used in the followings:
    Urban roads, local roads & rural roads
    Industrial park factory & factory roads
    Public garden & residential area
    Villa and private residence
    Car parking
    Shopping center & square
Catalog Install Manual
Get A Free Quote
  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

Technical Specifications

  • Model No. Watt(W)  Main Parameter
    SM-S048-10W 10W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:30/48pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:10W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:20W Lens angle:70*140º
    Batteries:6-9AH Work time:0-12H
    Solar Panel:17WP Waterproof: IP65
    Short Current: ＜5mA NW:5.0KG    GW:6.5KG
    Lighting effect:150LM/W Size.:438*300*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size:478*325*108mm  1PCS/CTN
    Height of installation:3-4M ; Install distance:  10-12M 20 feet container 1000pcs
    Light pole diameter:76-105mm 40 feet flat container 2000pcs/HQ 2500pcs
  • Model No. Watt(W)  Main Parameter

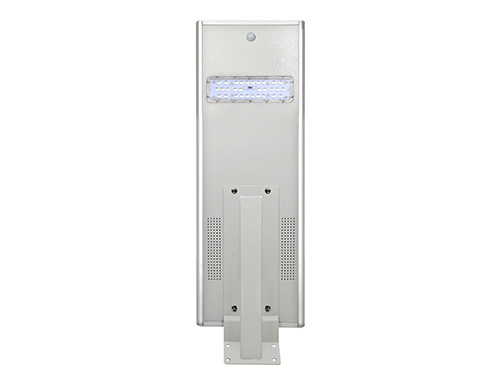

    SM-S048-15W 15W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:30/48pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:15W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:20W Lens angle:70*140º
    Batteries:10-11AH Work time:0-12H
    Solar Panel:26WP Waterproof: IP65
    Short Current: ＜5mA NW:7.5KG   GW:9.0KG
    Lighting effect:150LM/W Size.:688*300*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size:728*325*108mm  1PCS/CTN
    Height of installation:3-4M ; Install distance:  10-12M 20 feet container 400pcs
    Light pole diameter:76-105mm 40 feet flat container 800pcs/HQ 980pcs
  • Model No. Watt(W)  Main Parameter
    SM-S048-20W 20W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:50/64pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:20W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:20W Lens angle:70*140º
    Batteries:12-15AH Work time:0-12H
    Solar Panel:35WP Waterproof: IP65
    Short Current: ＜5mA  NW:9.6KG     GW:11.6KG
    Lighting effect:150LM/W Size.:828*300*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size:848*325*108mm  1PCS/CTN
    Height of installation:4-5M ; Install distance:  18-20M 20 feet container 400pcs
    Light pole diameter:76-105mm 40 feet flat container 800pcs/HQ 980pcs
  • Model No. Watt(W)  Main Parameter

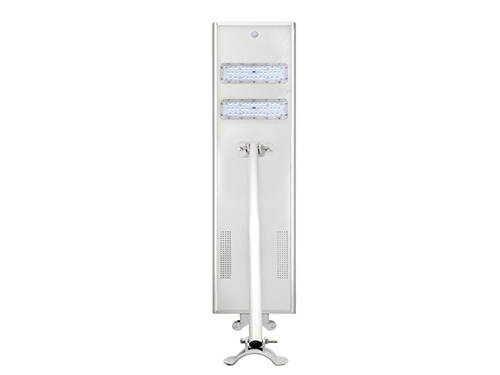

    SM-S048-30W 30W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:96pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:30W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:20W Lens angle:70*140º
    Batteries:18-22AH Work time:0-12H
    Solar Panel:45WP Waterproof: IP65
    Short Current: ＜5mA NW:13.6KG     GW:15.6KG
    Lighting effect:150LM/W Size.:1078*300*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size:1098*325*108mm  1PCS/CTN
    Height of installation:4-5M ; Install distance:  18-20M 20 feet container 290pcs
    Light pole diameter:76-105mm 40 feet flat container 580pcs/HQ 690pcs
  • Model No. Watt(W)  Main Parameter
    SM-S048-40W 40W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:100/128pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:40W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:40W Lens angle:70*140º
    Batteries:20-28AH Work time:0-12H
    Solar Panel:60WP Waterproof: IP65
    Short Current: ＜5mA NW:14.3.KG    GW:16.3KG
    Lighting effect:150LM/W Size.:1078*359*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size:1098*384*108mm 1PCS/CTN
    Height of installation:5-6M ; Install distance:  20-25M 20 feet container 230pcs
    Light pole diameter:76-105mm 40 feet flat container 470pcs/HQ 530pcs
  • Model No. Watt(W)  Main Parameter
    SM-S048-50W 50W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:90/144pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:50W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:40W Lens angle:70*140º
    Batteries:30-33AH Work time：0-12H
    Solar Panel:70WP Waterproof: IP65
    Short Current: ＜5mA GW:15.8KG     NW:17.8.KG
    Lighting effect:150LM/W Size: 1078*426*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size：1098*510*108mm(Lamp)
    Height of installation:5-6M ; Install distance:  20-25M 20 feet container 155pcs
    Light pole diameter:76-105mm 40 feet flat container 310pcs/HQ 376pcs
  • Model No. Watt(W)  Main Parameter

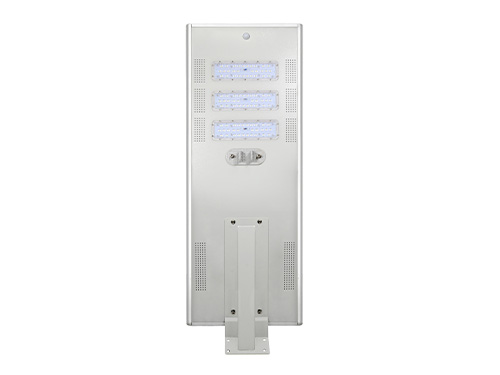

    SM-S048-60W 60W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:150/192pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:60W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:40W Lens angle:70*140º
    Batteries:33-39AH Work time:0-12H
    Solar Panel:80WP Waterproof: IP65
    Short Current: ＜5mA GW:16.2KG      NW:18.5KG
    Lighting effect:150LM/W Size: 1306*426*43mm
    Rainy days:3-5days     Charging time:8-10hrs Package size:1346*451*108mm(Lamp)
    Height of installation:6-7M ; Install distance:  25-30M 20 feet container 155pcs
    Light pole diameter:76-105mm 40 feet flat container 310pcs/HQ 376pcs
  • Model No. Watt(W)  Main Parameter

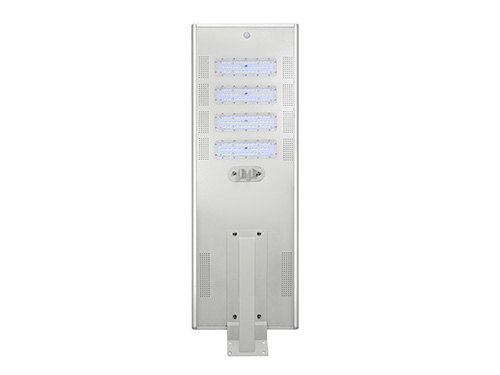

    SM-S048-80W 80W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:200/256pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:80W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:60W Lens angle:70*140º
    Batteries:40AH Work time:0-12H
    Solar Panel:108WP Waterproof: IP65
    Short Current: ＜5mA GW:19.9KG     NW:22.5KG
    Lighting effect:150LM/W Size: 1468*426*43mm
    Rainy days:2-3days     Charging time:8-10hrs Package size：1508*451*108mm(Lamp)
    Height of installation:7-8M ; Install distance:  25-30M 20 feet container 155pcs
    Light pole diameter:76-105mm 40 feet flat container 310pcs/HQ 376pcs
  • Model No. Watt(W)  Main Parameter
    SM-S048-100W 100W Material: aluminium Condition Temperature:  -20-50℃
    LED Qty:250/320pcs  Bridgelux/CREE 3030 Work Humidity: ＞95%
    Power:100W CRI: Ra>80
    Input Voltage:DC12V Controller efficiencyr: ≥0.90
    Controller:60W Lens angle:70*140º
    Batteries:52AH Work time:0-12H
    Solar Panel:120WP Waterproof: IP65
    Short Current: ＜5mA GW:22.0KG      NW:24.5KG
    Lighting effect:150LM/W Size: 1478*562*43mm
    Rainy days:3-5days     Charging time:8-10hrs Package size:1518*587*108mm(Lamp)
    Height of installation:8-9M ; Install distance:  30-35M 20 feet container 155pcs
    Light pole diameter:76-105mm 40 feet flat container 310pcs/HQ 376pcs
