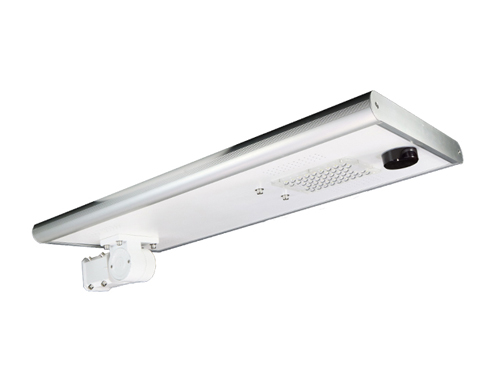

  • solar street light 2
  • 太阳能板

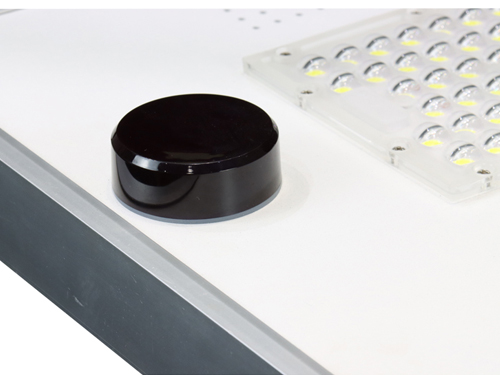

  • radar sensor

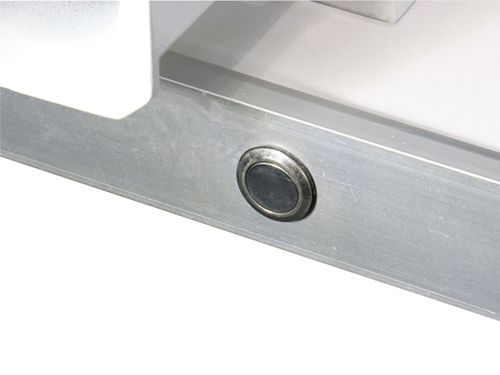

  • switch

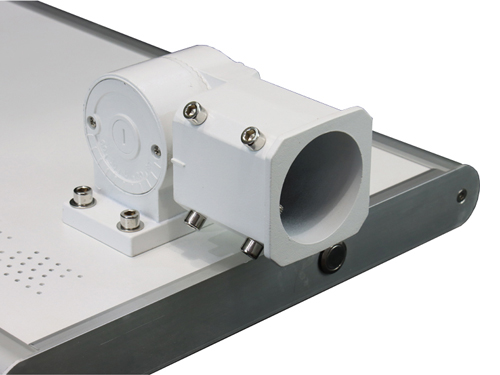

  • bracket
Solar Street Light

Series No.: SM-S019

The LUMILEDS5050 LED chips from Philips is used, which with low light decay, less heat generation and a service life of more than 50000 hours.

Adopt high-efficiency monocrystalline silicon solar panels, the conversion efficiency is as high as 18%, and the life span is more than 20 years.

The whole lamp housing is made of 6063 aluminum alloy, which is durable and has good heat dissipation performance. Anti-corrosion and anti-rust.

The use of high-quality large-capacity LiFePO4 battery, safe, high temperature resistant, small size, environmental protection, cycle life of more than 2000 times.

The whole lamp is designed with waterproof structure, and the ingress protection is IP65, which is suitable for various outdoor environments.

The working mode of the lamp can be customized according to customer requirements, such as 100% power for the first 4 hours, and 40% for the next few hours until dawn. There is also a human body induction function, which can reduce energy consumption.

An intelligent solar controller is installed inside the lamp body to accurately control the internal current and voltage, and protect the battery charge and discharge to ensure the stable operation of the entire system.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

Technical Specifications

  • Model NO SM-S019/15 SM-S019/20 SM-S019/25 SM-S019/30 SM-S019/40 SM-S019/50 SM-S019/60
    Power 15W 20W 25W 30W 40W 50W 60W
    Luminaire Flux(Full power) 2200-2400LM 3000-3200LM 3750-4000LM 4500-4800LM 6000-6400LM 7500-8000LM 9000-9300LM
    Power 15W 20W 25W 30W 40W 50W 60W
    LED source LUMILEDS5050 LUMILEDS5050 LUMILEDS5050 LUMILEDS5050 LUMILEDS5050 LUMILEDS5050 LUMILEDS5050
    LiFePO4 Battery 12V 15AH 12V 18AH 12V 22AH 12V 28AH 12V 35AH 12V 45AH 12V 55AH
    Solr panel (Mono) 18V 30W 18V 40W 18V 50W 18V 60W 18V 80W 18V 90W 18V 100W
    Color Temperature 6500K 6500K 6500K 6500K 6500K 6500K 6500K
    Battery Life Span  2000 cycles  2000 cycles  2000 cycles  2000 cycles  2000 cycles  2000 cycles  2000 cycles
    Advised Installation pole Height 3-4M 4-5M 5-6M 5-6M 6-7M 7-8M 8-10M
    Product size 525*385*150mm 685*385*150mm 885*385*150mm 990*385*150mm 1305*385*150mm 985*540*150mm 1305*540*150mm
    Charge time 7-8 hours in sunny weather
    Backup time 3-5 Rainy Days
    Ingress Protection IP65
    Sensor type Microwave sensor
    Remote controller option
    Life span 50,000 hours @ 25℃ ambient temperature
    Operating Temperature -35℃ to 65℃
    Working mode Lighting time of 12 hours/day, 4 hours 100% full power ,8 hours 50% full power
    With microwave induction switch,100% current power when there are people,30% current power when there are nobody(light-controlled+time-controlled+human body induction)
    More Options Solar power and battery capacity can be customized according to customer needs, also the working mode.
