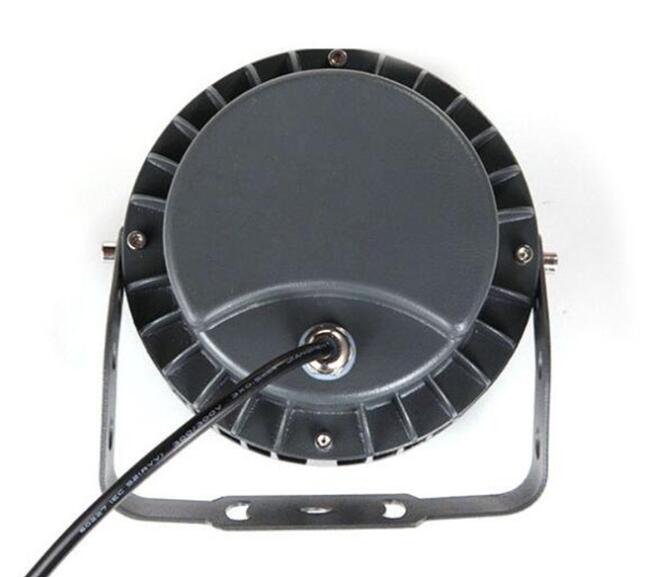

  • SM TGD CL 2

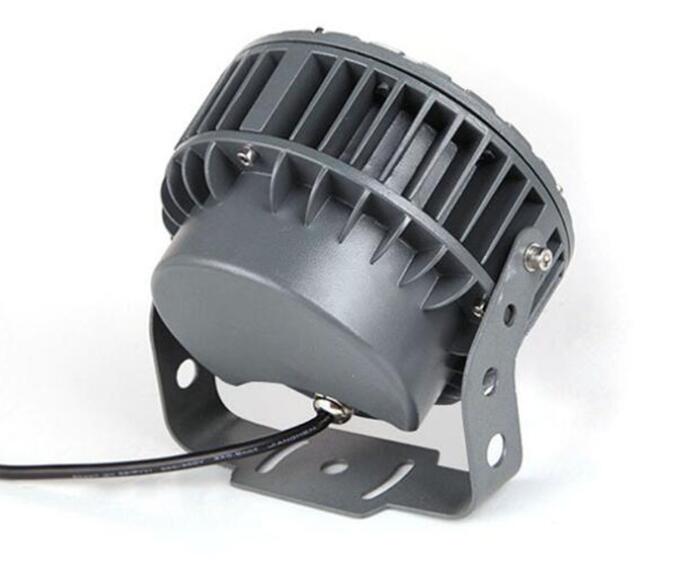

  • SM TGD CL 3

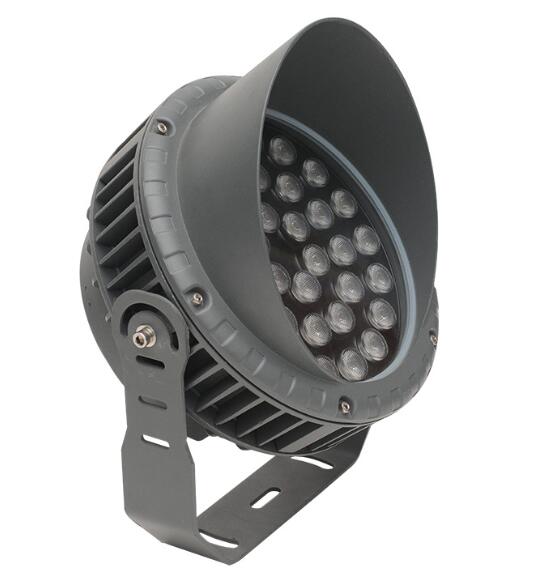

  • SM TGD CL 4

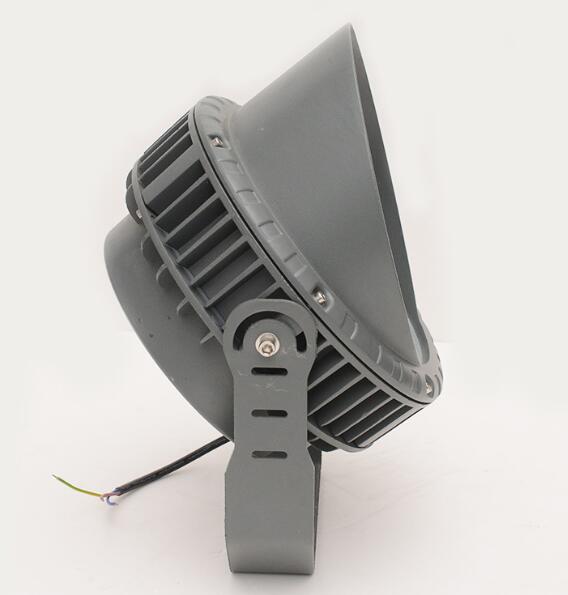

  • SM TGD CL 5
LED Flood Light

Series No.: SM-TGD-CL

  • LED floodlights are suitable for outdoor lighting, bridges, buildingfacades, billboards, hotels, cultural squares and other facilities.Waterproof structure, transparent heat dissipation design, easyinstallation, dimming RB, suitable for ambient temperature -35 Cto +55 C, lamp life s 35,000 hours.

Material:

  • I Die-cast aluminum, 4m tempered glass, stainless steel screws.

Surface treatment

  • Mechanical and chemical anti-corrosion treatment, anti-UV

polyester powder, outdoor grade spraying, anti-salt spray level 3.

Optional:

  •  Beam angle, surface spray color, and outlet length.

Electric appliance

  • Built-in constant current drive with over temperature overload protection.
  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

Technical Specifications

  • Item No. SM-TGD-CL5 SM-TGD-CL9 SM-TGD-CL12 SM-TGD-CL18 SM-TGD-CL24
    Watts 5*1W 9*1W 12*1W 18*1W 24*1W
    Size(mm) ø95 ø130 ø150 ø180 ø230
    Beam angle(°) 10°30°45°60°
    CRI 70-80 70-80 70-80 70-80 70-80
    IP Rating IP65 IP65 IP65 IP65 IP65
    PF 0.9 0.9 0.9 0.9 0.9
    Input Voltage 85-265V 85-265V 85-265V 85-265V 85-265V
    LED Chips Epistar Epistar Epistar Epistar Epistar
    LED Driver Suiming/Meanwell/ Inventronics/Philips optional

OEM Outdoor LED Lights
with Favorable Wholesale Pricing!
