Wall Washer Light

Series No.: SM-XQD-001

Wall washer

Applicable place / product features

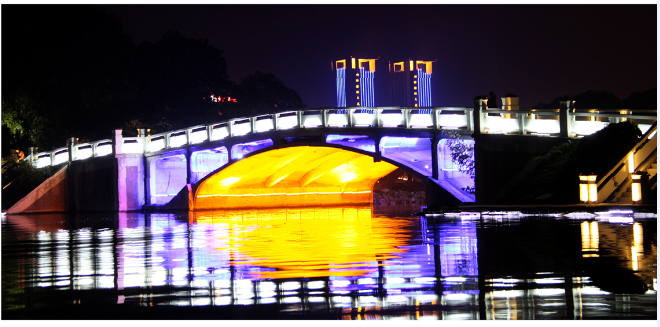

■LED wall washer, suitable for outdoor buildings, bridges,
floodlight projection lighting of ancient buildings; sealing
ring adopts imported anti-aging silicone rubber Raw material,
convection heat dissipation design, waterproof structure,
dimming RGB, suitable for ambient temperature -35°C-+55°C,

lamp life≥35,000 hours.

Material:

■ Lamp body 6063 stretched aluminum, plug die-cast aluminum,
4mm tempered glass, stainless steel screws.

Surface treatment:
■Mechanical and chemical anti-corrosion treatment, anti-UV
polyester powder, outdoor grade spraying, anti-salt spray level 3.

Optional:
■ Beam angle, surface spray color, and outlet length.

Electric appliance
■ Built-in constant current drive with over temperature overload protection.

  • s02 icon1
    Patented Products
  • s02 icon2
    High Brightness
  • s02 icon3
    High Efficacy
  • s02 icon5
    Good Heat Dissipation
  • s02 icon6
    ECO Friendly
  • s02 icon7
    Easy Install

Stable and Genuine Properties

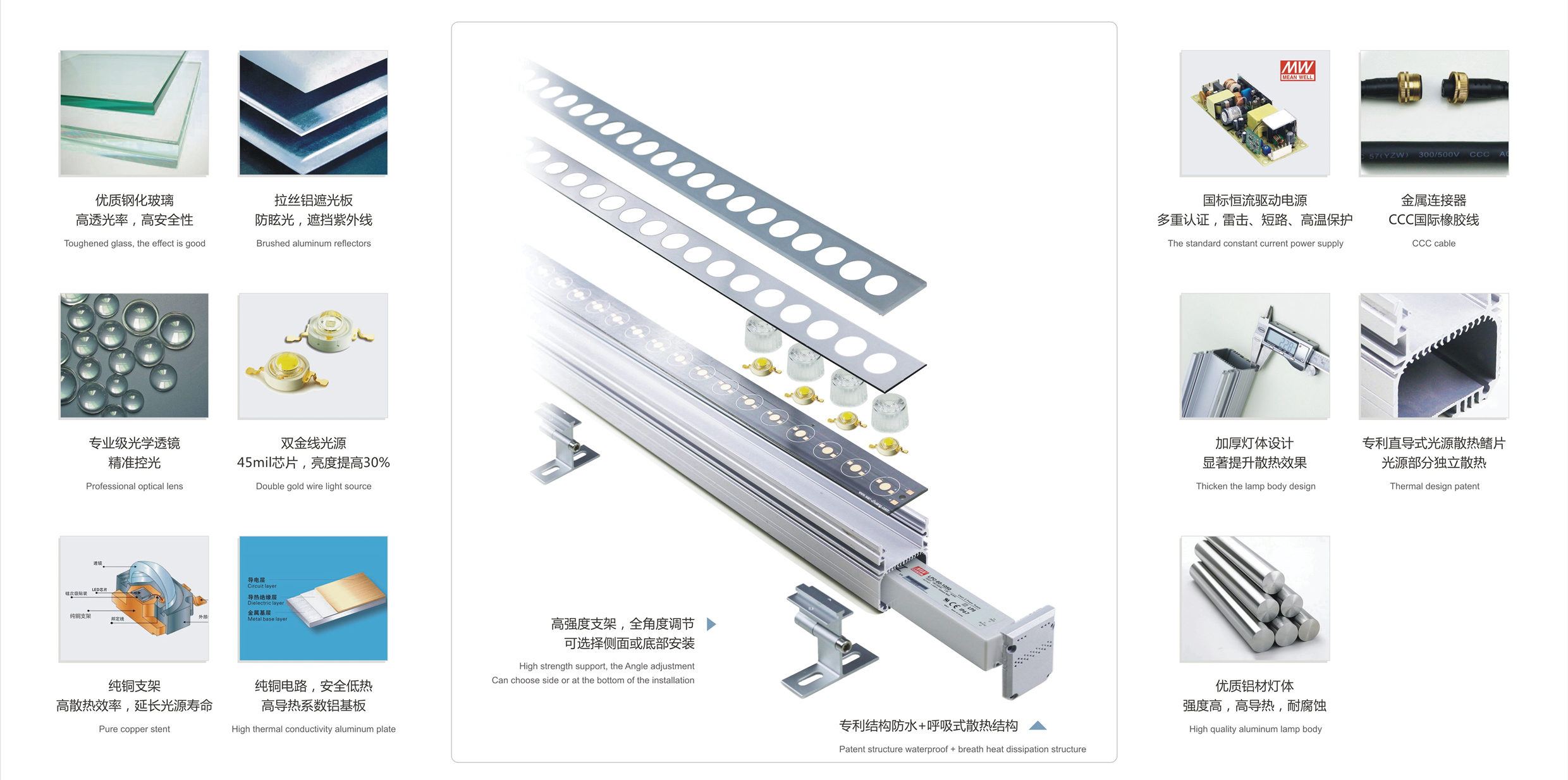

结构分解图 1

Technical Specifications

  • Model NO SM-XQD-001
    Input Voltage DC24V/AC110V/AC220V
    Average Beam Angle 5°-120°
    Power 48W
    Luminous Efficacy 100lm/w
    Color Temperature 2000K-6500K, Single color,RGB
    Color Rendering Index 70/80/90Ra
    Ingress Protection IP65
    Impact Resistance IK08
    Life span 50,000 hours @ 25℃ ambient temperature
    Operating Temperature -30℃ to 65℃
    Product size 1000*50*60mm
    Material  Aluminum alloy body + tempered glass
    Control Mode DMX512
    More Options Can design new models as per clients’ requirements
